AL RH5Z1-OL/-2OL - TANO CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

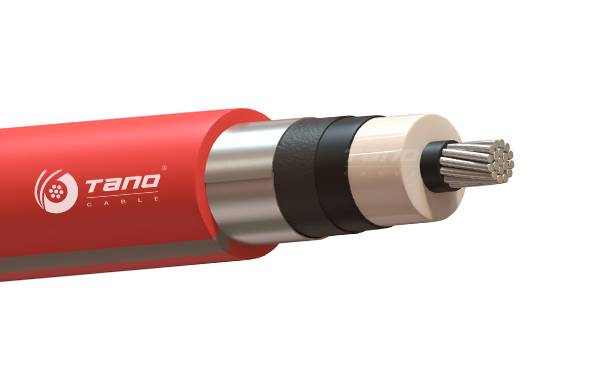

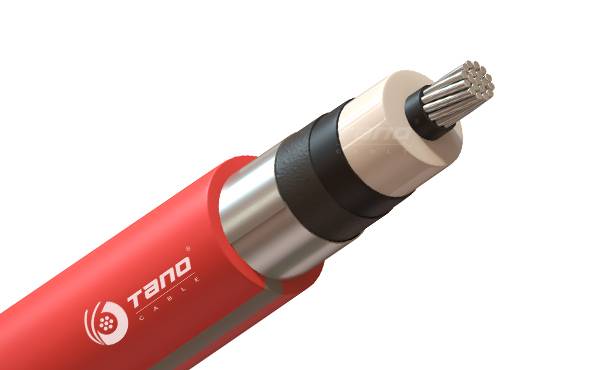

AL RH5Z1-OL/-2OL is a Medium Voltage aluminium cable with XLPE insulation and halogen free outer sheath. Longitudinal aluminum screen provides additional water protection. Suitable for power distribution in multiple applications including renewable energy installations, external use or direct burial.

DESCRIPTION

Medium Voltage aluminium conductor with XLPE insulation, with longitudinal aluminium tape screen, LSZH sheath.

STANDARD

IEC 60502-2, UNE 211620

MAIN CHARACTERISTICS

Voltage Rating
12/20(24) kV
18/30(36) kV

Temperature Rating
-15°C to +90°C

Minimum Bending Radius
20 x overall diameter

Fire characteristics
No flame propagation according to UNE-EN 60332-1 / IEC 60332-1.
CPR fire reaction: Eca according to EN 50575.
Halogen-free according to UNE-EN 60754-1 / IEC 60754-1.
Low emission of corrosive gases according to UNE-EN 60754-2 / IEC 60754-2.

Environmental characteristics
UV resistance according to UNE 211605.
Water resistance: AD8 Immersion.

DOWNLOAD
CABLE DATASHEET

12/20(24) kV
18/30(36) kV

IEC 60502-2
UNE 211620

Renewable energy
External use
Direct burial

BY COLOR STRIPS

Specifications

ELECTRICAL PERFORMANCE

12/20(24) kV
18/30(36) kV

STANDARD

IEC 60502-2
UNE 211620

APPLICATION

Renewable energy
External use
Direct burial

CORE IDENTIFICATION

BY COLOR STRIPS

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x20 cable diameter

FIRE PERFORMANCE

No flame propagation according to UNE-EN 60332-1 / IEC 60332-1.
CPR fire reaction: Eca according to EN 50575.
Halogen-free according to UNE-EN 60754-1 / IEC 60754-1.
Low emission of corrosive gases according to UNE-EN 60754-2 / IEC 60754-2.

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Minimum service temperature: -15°C
Minimum installation temperature: 0 °C
Maximum short-circuit temperature: 250°C (maximum 5 s)

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
IN CONDUIT
DIRECT BURIAL

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY FULL WOODEN OR STEEL-WOODEN REEL/DRUM

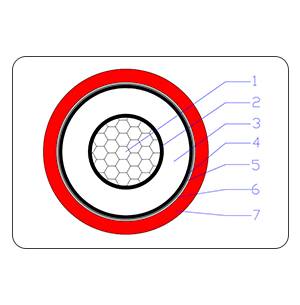

CONSTRUCTION

1.Conductor

Class 2 stranded aluminium according to UNE-EN 60228 and IEC 60228.
Optionally, with longitudinal seal (type -2OL).

2.Conductor Screen:

Semi-conductive compound

3.Insulation

Cross-linked polyethylene(XLPE) according to HD 620-1, natural colour.

4.Insulation Screen:

Semi-conductive compound (strippable type).

5.Longitudinal Seal

Semi-conductive swellable water-blocking tape

6.Metal screen

0.3 mm thick aluminium tape applied longitudinally to the water-blocking tape and adhered to the outer sheath.

7.Outer Sheath

LSZH(red color with two gray stripes)

PARAMETER

RH5Z1-OL(S) 12/20(24) kV

RH5Z1-OL(S) 18/30(36) kV

Section	Conductor Diameter	Insulation Diameter	Outer Diameter	Tape Width	Screen Section	Weight	R20°C	Open Air	Buried	Piped
mm2	mm	mm	mm	mm	mm2	Kg/Km	Ω/km	A	A	A
1x50	8.0	18.2	25.3	70	21	585	0.817	184	152	144
1x95	11.2	21.4	28.5	80	24	795	0.320	280	221	210
1x120	12.7	22.9	30.0	90	27	915	0.253	324	252	240
1x150	13.9	24.1	31.2	95	28.5	1020	0.206	368	281	267
1x185	15.5	25.7	32.8	100	30	1160	0.164	424	317	303
1x240	18.0	28.2	35.3	105	31.5	1385	0.125	502	367	351
1x300	20.0	30.2	37.3	110	33	1580	0.100	577	414	397
1x400	22.9	33.3	40.4	120	36	1920	0.0778	673	470	451
1x500	26.3	37.0	44.1	130	39	2280	0.0605	777	542	519
1x630	29.8	40.2	47.3	140	42	2750	0.0469	895	615	588

Expand More

Section	Conductor Diameter	Insulation Diameter	Outer Diameter	Tape Width	Screen Section	Weight	R20°C	Open Air	Buried	Piped
mm2	mm	mm	mm	mm	mm2	Kg/Km	Ω/km	A	A	A
1x50	8.0	22.4	29.5	90	27	770	0.817	184	152	144
1x95	11.2	25.8	32.9	100	30	1010	0.320	280	221	210
1x120	12.7	27.3	34.4	100	30	1120	0.253	324	252	240
1x150	13.9	28.5	35.6	105	31.5	1235	0.206	368	281	267
1x185	15.5	30.1	37.2	110	33	1390	0.164	424	317	303
1x240	18.0	32.6	39.7	120	36	1635	0.125	502	367	351
1x300	20.0	34.6	41.7	130	39	1845	0.100	577	414	397
1x400	22.9	37.7	44.8	140	42	2210	0.0778	673	470	451
1x500	26.3	41.2	48.3	150	45	2580	0.0605	777	542	519
1x630	29.8	43.8	50.9	160	48	3020	0.0469	895	615	588
1X800	34.0	48.9	56.0	170	51	3680	0.0367	1036	700	670
