RV-K PVC FLEXIBLE CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

The RV-K cable is for power distribution and can be used for all types of low voltage industrial-type connections, building installations, in urban grids, etc. This cable is particularly suitable for use in challenging layouts because of its high flexibility, also making the installation process substantially easier. It can be buried or installed in ducts as well as outdoors without requiring additional protection. The RV-K cable is rated AD8 for water resistance, permitting permanent submersion to 5m depth.

DESCRIPTION

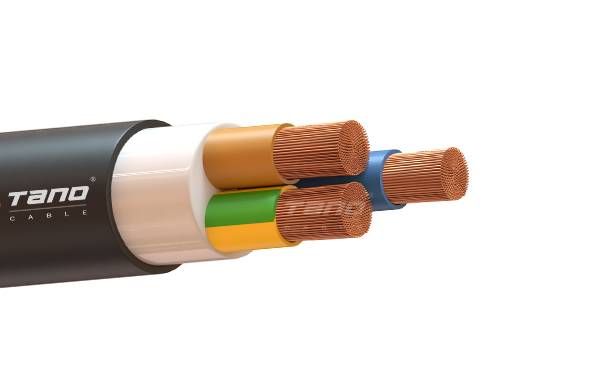

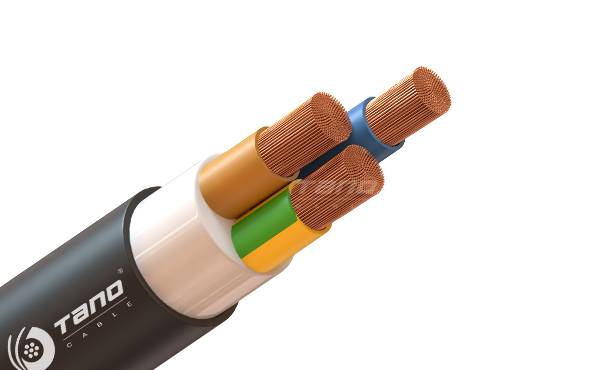

RV-K cable is composed of Class 5 (fexible) copper conductor, XLPE insulation, and PVC sheath.

STANDARD

IEC 60502-1, UNE 21123-2

MAIN CHARACTERISTICS

Voltage Rating (Uo/U)
0.6/1kV
Temperature Rating
-15°C to +90°C
Minimum Bending Radius
5 x overall diameter

DOWNLOAD
CABLE DATASHEET

0.6/1kV

IEC 60502-1
UNE 21123-2

INDUSTRIAL USE
URBAN GRIDS

BY COLOR
BY NUMBERS

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

IEC 60502-1
UNE 21123-2

APPLICATION

INDUSTRIAL USE
URBAN GRIDS

CORE IDENTIFICATION

BY COLOR
BY NUMBERS

CHEMICAL PERFORMANCE

Chemical & Oil resistance: Good
UV Resistant: based on UNE 211605

MECHANICAL PERFORMANCE

Minimum bending radius:x5 cable overall diameter

FIRE PERFORMANCE

Flame non-propagation based on EN 60332-1 and IEC 60332-1
Reaction to fire CPR: Eca, according to EN 50575
Reduced halogen emission. Chlorine <15%

THERMINAL PERFORMANCE

Maximum service temperature: 90ºC
Maximum short-circuit temperature: 250ºC (max. 5 s)
Minimum installation and handling temperature: 0ºC (on cable surface)
Minimum service temperature: -40ºC (fixed and protected installations)

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

BURIED
IN CONDUIT
ON TRAY
OPEN AIR

CABLE MARKING

LASER PRINTING
OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL OR BY WOODEN REEL/DRUM

CONSTRUCTION

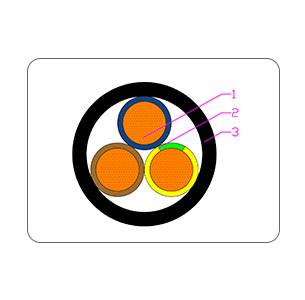

1. Conductor:

Class 5 flexible copper conductor

2. Insulation:

XLPE (Cross-Linked Polyethylene)

3. Sheath:

PVC (Polyvinyl Chloride)

Core Identification:

1 core: Natural
2 cores: Blue + Brown
3 G: Blue + Brown + Green/Yellow
3 cores: Brown + Black + Grey
3+1 cores: Brown + Black + Grey + Blue (reduced cross-section)
4 G: Brown + Black + Grey + Green/Yellow
4 cores: Brown + Black + Grey + Blue
5 G: Brown + Black + Grey + Blue + Green/Yellow
6G or more: Black numbered + Green/Yellow

Other colours available on request

Sheath Colour:

Black

PARAMETER

Table 1

NO. OF CORE	NOMINAL CROSS SECTIONAL AREA	NUMBER WIRES IN CONDUCTOR	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT	MAXIMUM RESISTANCE OF CONDUCTOR AT 20℃
	mm2		mm	mm	kg/km	ohms/km
1	1.5	24	0.7	5.7	45	13.3
1	2.5	40	0.7	6.2	57	7.98
1	4	48	0.7	6.7	74	4.95
1	6	72	0.7	7.3	95	3.30
1	10	68	0.7	8.3	141	1.91
1	16	116	0.7	9.2	197	1.21
1	25	182	0.9	11.0	293	0.780
1	35	224	0.9	12.0	386	0.554
1	50	324	1	13.6	535	0.386
1	70	304	1.1	15.3	703	0.272
1	95	416	1.1	17.0	925	0.206
1	120	544	1.2	19.2	1138	0.161
1	150	640	1.4	21.0	1428	0.129
1	185	800	1.6	22.9	1742	0.106
1	240	1088	1.7	25.9	2266	0.0801
1	300	1344	1.8	28.8	2833	0.0641
1	400	1760	2.0	34.4	3620	0.0486
1	500	2376	2.2	37.4	4864	0.0384
2	1.5	24	0.7	8.7	103	13.3
2	2.5	40	0.7	9.5	132	7.98
2	4	48	0.7	10.6	176	4.95
2	6	72	0.7	11.7	227	3.30
2	10	68	0.7	13.6	334	1.91
2	16	116	0.7	15.7	472	1.21
2	25	182	0.9	18.9	709	0.780
2	35	224	0.9	21.4	955	0.554
2	50	324	1.0	23.0	1162	0.386
2	70	304.0	1.1	24.9	1604	0.272
2	95	416	1.1	27.9	2085	0.206
2	120	544	1.2	31.5	2649	0.161
2	150	640	1.4	34.7	3269	0.129
2	185	800	1.6	43.6	3962	0.106
2	240	1088	1.7	16.3	5231	0.0801
3	1.5	24	0.7	9.9	134	13.3
3	2.5	40	0.7	11.0	177	7.98
3	4	48	0.7	12.1	238	4.95
3	6	72	0.7	13.4	311	3.30
3	10	68	0.7	15.5	474	1.91
3	16	116	0.7	17.5	671	1.21
3	25	182	0.9	21.3	1017	0.780
3	35	224	0.9	23.5	1340	0.554
3	50	324	1.0	27.0	1867	0.386
3	70	304	1.1	30.8	2484	0.272
3	95	416	1.1	34.3	3246	0.206
3	120	544	1.2	39.2	4064	0.161
3	150	640	1.4	43.1	5092	0.129
3	185	800	1.6	47.3	6233	0.106
3	240	1088	1.7	53.8	8133	0.0801
4	1.5	24	0.7	10.7	157	13.3
4	2.5	40	0.7	11.9	210	7.98
4	4	48	0.7	13.1	287	4.95
4	6	72	0.7	14.5	377	3.30
4	10	68.0	0.7	17.0	584	1.91
4	16	116	0.7	19.1	834	1.21
4	25	182	0.9	23.4	1269	0.780
4	35	224	0.9	25.9	1683	0.554
4	50	324	1	30.0	2372	0.386
4	70	304	1.1	34.3	3157	0.272
4	95	416	1.1	38.1	4134	0.206
4	120	544	1.2	43.9	5188	0.161
4	150	640	1.4	47.9	6479	0.129
4	185	800	1.6	52.8	7964	0.106
4	240	1088.0	1.7	60.1	10388	0.0801
5	1.5	24	0.7	11.5	183	13.3
5	2.5	40	0.7	12.8	247	7.98
5	4	48	0.7	14.2	338	4.95
5	6	72	0.7	15.8	448	3.30
5	10	68	0.7	18.5	697	1.91
5	16	116	0.7	20.9	1003	1.21
5	25	182	0.9	25.7	1531	0.780
5	35	224	0.9	28.5	2037	0.554
5	50	324	1	33.2	2893	0.386
5	70	304	1.1	38.0	3851	0.272
5	95	416	1.1	42.5	5071	0.206
5	120	544	1.2	48.6	6325	0.161
5	150	640	1.4	53.3	7936	0.129
