Quadruplex Service Drop Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

SPECIFICATION

Tano Cable's quadruplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

Tano Cable's quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .

DOWNLOAD
CABLE DATASHEET

0.6/1kV

ANSI/ICEA S-76-474

OVERHEAD SERVICE

BY COLOR STRIPE
BY RIB
BY NUMBER

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

ANSI/ICEA S-76-474

APPLICATION

OVERHEAD SERVICE

CORE IDENTIFICATION

BY COLOR STRIPE
BY RIB
BY NUMBER

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

N/A

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY POLYWOOD OR WOODEN OR STEEL-WOODEN REEL/DRUM

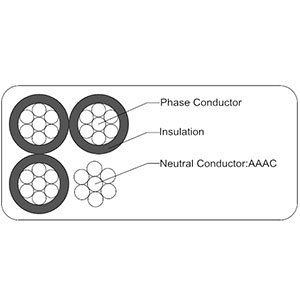

CONSTRUCTION

Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or crosslinked polyethylene (XLP). Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)

1. Phase Conductor

Circular stranded, rounded, aluminum conductor 1350

2. Neutral(Messenger) Conductor

Bare AAC, AAAC 6201, ACSR

3. Insulation

Black color Polyethylene(PE) or Cross-linked polyethylene(XLPE)

PARAMETER

6201 ALLOY NEUTRAL-MESSENGER

AAC NEUTRAL-MESSENGER

ACSR NEUTRAL-MESSENGER

Code Word	Phase Conductor			Bare Neutral Messenger				Weight Per 1000ft.(Ibs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Insul. Thick. (mils)	Equiv. Dia. (AWG)++	Size (kcmil)	Stranding	Rated Strength (Ibs.)	XLP	POLY	XLP	POLY
6201 ALLOY NEUTRAL-MESSENGER
Bay	6	1	45	6	30.58	7	1110	137	137	75	60
French Coach	6	7	45	6	30.58	7	1110	146	146	75	60
German Coach	4	1	45	4	48.69	7	1760	205	205	100	80
Arabian	4	7	45	4	48.69	7	1760	217	217	100	80
Belgian	2	7	45	2	77.47	7	2800	328	328	135	105
Shetland	1/0	9	60	1/0	123.3	7	4460	519	519	180	140
Thoroughbred	2/0	11	60	2/0	155.4	7	5390	639	639	205	160
Trotter	3/0	17	60	3/0	195.7	7	6790	789	789	235	185
Walking	4/0	18	60	4/0	246.9	7	8560	977	977	275	210
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2ft./sec. wind in sun. ++Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201.

Expand More

Code Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000ft.(Ibs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Insul. Thick. (mils)	Size (kcmil)	Stranding	Rated Strength (Ibs.)	XLP	POLY	XLP	POLY
AAC NEUTRAL-MESSENGER
Clydesdale	4	1	45	4	7	881	198	198	100	80
Pinto	4	7	45	4	7	881	211	211	100	80
Mustang	2	7	45	2	7	1350	318	318	135	105
Criollo	1/0	9	60	1/0	7	1990	503	503	180	140
Percheron	2/0	11	60	2/0	7	2510	619	619	205	160
Hanovarian	3/0	17	60	3/0	19	3310	764	764	235	185
Oldenburg	4/0	18	60	4/0	19	4020	945	945	275	210
Lippizaner	336.4	19	80	336.4	19	6146	1519	1519	370	280
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2ft./sec. wind in sun.

Expand More

Code Word	Phase Conductor			Bare Neutral Messenger			Weight Per 1000ft.(Ibs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Insul. Thick. (mils)	Size (kcmil)	Stranding	Rated Strength (Ibs.)	XLP	POLY	XLP	POLY
ACSR NEUTRAL-MESSENGER
Morochuca	6	1	45	6	43252	1190	145	145	75	60
Chola	6	7	45	6	43252	1190	153	153	75	60
Morgan	4	1	45	4	43252	1860	217	217	100	80
Hackney	4	7	45	4	43252	1860	229	229	100	80
Palomino	2	7	45	2	43252	2850	347	347	135	105
Costena	1/0	9	60	1/0	43252	4380	549	549	180	140
Grullo	2/0	11	60	2/0	43252	5310	677	677	205	160
Suffolk	3/0	17	60	3/0	43252	6620	837	837	235	185
Appaloosa	4/0	18	60	4/0	43252	8350	1038	1038	275	210
Gelding	336.4	19	80	4/0	43252	8350	1494	1494	370	280
Bronco	336.4	19	80	336.4	43118	8680	1568	1568	370	280
+Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2ft./sec. wind in sun.

Expand More
