XLPE Insulated Control Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

The control cable has a very good property for resistant causticity of chemical solvent. It is used as a connecting wire of electrical equipment and instrument ,transmitting wire of automatic control system for rock oil, chemical, electric power, metallurgical and so on.

STANDARD

IEC 60227, IEC 60502, GB/T 9330, BS 6500

TECHNICAL DATA

Voltage(U0/U): 450/750V
Conductor working temperature: 90°C
Minimum bending radius:
Non-armored cables: 6 x Ø
Armored or copper tape screen cables: 12 x Ø
Screened flexible cables: 6 x Ø

DOWNLOAD
CABLE DATASHEET

450/750V

IEC 60227, IEC 60502, GB/T 9330, BS 6500

INDUSTRIAL USE

BY COLOR
BY NUMBER

Specifications

ELECTRICAL PERFORMANCE

450/750V

STANDARD

IEC 60227, IEC 60502, GB/T 9330, BS 6500

APPLICATION

INDUSTRIAL USE

CORE IDENTIFICATION

BY COLOR
BY NUMBER

CHEMICAL PERFORMANCE

Chemical & Oil resistance: Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1
Reduced emission of halogens chlorine＜15%

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED
IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

CONSTRUCTION

CABLE TYPES:

MODEL	DESCRIPTION

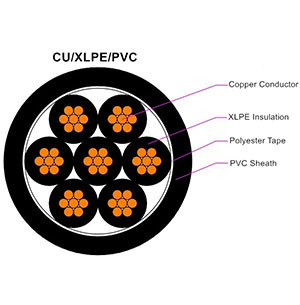

KYJV	Copper Conductor XLPE Insulated PVC Sheathed Control Cable

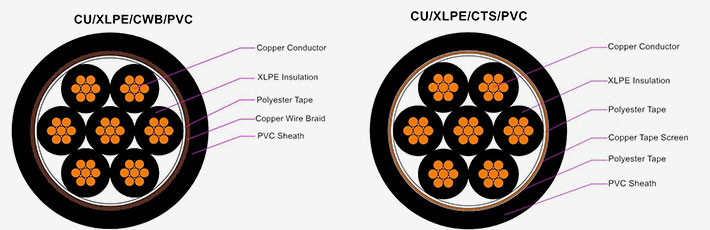

KYJVP	Copper Conductor XLPE Insulated Copper Wire Braided Screen PVC Sheathed Control Cable
KYJVP2	Copper Conductor XLPE Insulated Copper Tape Screen PVC Sheathed Control Cable

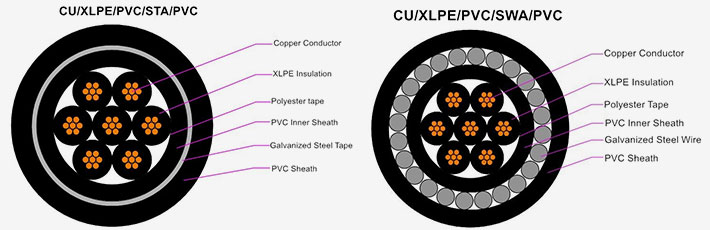

KYJV22	Copper Conductor XLPE Insulated Galvanized Steel Tape Armored PVC Sheathed Control Cable
KYJV32	Copper Conductor XLPE Insulated Galvanized Steel Wire Armored PVC Sheathed Control Cable

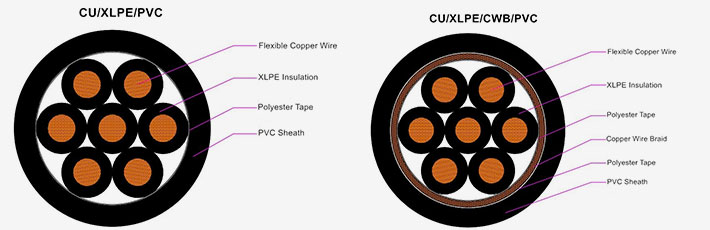

KYJVR	Copper Conductor XLPE Insulated PVC Sheathed Flexible Control Cable
KYJVRP	Copper Conductor XLPE Insulated Copper Wire Braided Screen PVC Sheathed Flexible Control Cable

PARAMETER

KYJV

KYJV22

KYJV32

KYJVP

KYJVP2

KYJVR

KYJVRP

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×0.75	1/0.97	0.6	1.20	7.0	53	2×0.75	7/0.37	0.6	1.20	7.3	56
3×0.75	1/0.97	0.6	1.20	7.4	65	3×0.75	7/0.37	0.6	1.20	7.7	68
4×0.75	1/0.97	0.6	1.20	8.0	78	4×0.75	7/0.37	0.6	1.20	8.3	81
5×0.75	1/0.97	0.6	1.20	8.6	91	5×0.75	7/0.37	0.6	1.20	8.9	95
6×0.75	1/0.97	0.6	1.20	9.2	104	6×0.75	7/0.37	0.6	1.20	9.6	108
7×0.75	1/0.97	0.6	1.20	9.2	114	7×0.75	7/0.37	0.6	1.20	9.6	119
8x0.75	1/0.97	0.6	1.20	10.2	129	8x0.75	7/0.37	0.6	1.20	10.7	135
10x0.75	1/0.97	0.6	1.20	11.4	155	10x0.75	7/0.37	0.6	1.20	11.9	162
12x0.75	1/0.97	0.6	1.20	11.7	176	12x0.75	7/0.37	0.6	1.20	12.3	184
14x0.75	1/0.97	0.6	1.20	12.3	198	14x0.75	7/0.37	0.6	1.50	13.5	226
16x0.75	1/0.97	0.6	1.50	13.5	239	16x0.75	7/0.37	0.6	1.50	14.2	250
19x0.75	1/0.97	0.6	1.50	14.2	273	19x0.75	7/0.37	0.6	1.50	14.9	285
24x0.75	1/0.97	0.6	1.50	16.3	336	24x0.75	7/0.37	0.6	1.50	17.2	351
27x0.75	1/0.97	0.6	1.50	16.6	367	27x0.75	7/0.37	0.6	1.50	17.5	383
30x0.75	1/0.97	0.6	1.50	17.2	399	30x0.75	7/0.37	0.6	1.50	18.1	417
37x0.75	1/0.97	0.6	1.50	18.5	475	37x0.75	7/0.37	0.6	1.70	19.9	514
44x0.75	1/0.97	0.6	1.70	21.1	576	44x0.75	7/0.37	0.6	1.70	22.2	602
48x0.75	1/0.97	0.6	1.70	21.4	617	48x0.75	7/0.37	0.6	1.70	22.5	644
52x0.75	1/0.97	0.6	1.70	21.9	659	52x0.75	7/0.37	0.6	1.70	23.1	689
61x0.75	1/0.97	0.6	1.70	23.2	755	61x0.75	7/0.37	0.6	1.70	24.5	788

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×1	1/1.13	0.6	1.20	7.4	61	2×1	7/0.43	0.6	1.20	7.7	63
3×1	1/1.13	0.6	1.20	7.7	75	3×1	7/0.43	0.6	1.20	8.1	78
4×1	1/1.13	0.6	1.20	8.3	91	4×1	7/0.43	0.6	1.20	8.7	95
5×1	1/1.13	0.6	1.20	9.0	107	5×1	7/0.43	0.6	1.20	9.4	111
6×1	1/1.13	0.6	1.20	9.7	123	6×1	7/0.43	0.6	1.20	10.2	128
7×1	1/1.13	0.6	1.20	9.7	135	7×1	7/0.43	0.6	1.20	10.2	141
8x1	1/1.13	0.6	1.20	10.7	153	8x1	7/0.43	0.6	1.20	11.3	160
10x1	1/1.13	0.6	1.20	12.0	185	10x1	7/0.43	0.6	1.50	13.3	212
12x1	1/1.13	0.6	1.50	13.0	230	12x1	7/0.43	0.6	1.50	13.7	240
14x1	1/1.13	0.6	1.50	13.6	258	14x1	7/0.43	0.6	1.50	14.3	269
16x1	1/1.13	0.6	1.50	14.3	287	16x1	7/0.43	0.6	1.50	15.0	300
19x1	1/1.13	0.6	1.50	15.0	329	19x1	7/0.43	0.6	1.50	15.8	343
24x1	1/1.13	0.6	1.50	17.3	407	24x1	7/0.43	0.6	1.50	18.2	414
27x1	1/1.13	0.6	1.50	17.6	446	27x1	7/0.43	0.6	1.50	18.6	464
30x1	1/1.13	0.6	1.50	18.2	486	30x1	7/0.43	0.6	1.70	19.7	525
37x1	1/1.13	0.6	1.70	20.0	600	37x1	7/0.43	0.6	1.70	21.1	624
44x1	1/1.13	0.6	1.70	22.3	704	44x1	7/0.43	0.6	1.70	23.6	733
48x1	1/1.13	0.6	1.70	22.7	755	48x1	7/0.43	0.6	1.70	24.0	786
52x1	1/1.13	0.6	1.70	23.3	809	52x1	7/0.43	0.6	1.70	24.6	841
61x1	1/1.13	0.6	1.70	24.7	929	61x1	7/0.43	0.6	1.70	26.1	966

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×1.5	1/1.38	0.6	1.20	7.9	73	2×1.5	7/0.52	0.6	1.20	8.2	76
3×1.5	1/1.38	0.6	1.20	8.3	93	3×1.5	7/0.52	0.6	1.20	8.7	96
4×1.5	1/1.38	0.6	1.20	8.9	114	4×1.5	7/0.52	0.6	1.20	9.4	117
5×1.5	1/1.38	0.6	1.20	9.7	135	5×1.5	7/0.52	0.6	1.20	10.2	139
6×1.5	1/1.38	0.6	1.20	10.4	157	6×1.5	7/0.52	0.6	1.20	11.0	161
7×1.5	1/1.38	0.6	1.20	10.4	174	7×1.5	7/0.52	0.6	1.20	11.0	179
8x1.5	1/1.38	0.6	1.20	11.6	198	8x1.5	7/0.52	0.6	1.20	12.2	203
10x1.5	1/1.38	0.6	1.50	13.6	259	10x1.5	7/0.52	0.6	1.50	14.3	267
12x1.5	1/1.38	0.6	1.50	14.0	296	12x1.5	7/0.52	0.6	1.50	14.8	304
14x1.5	1/1.38	0.6	1.50	14.7	335	14x1.5	7/0.52	0.6	1.50	15.5	344
16x1.5	1/1.38	0.6	1.50	15.4	374	16x1.5	7/0.52	0.6	1.50	16.3	384
19x1.5	1/1.38	0.6	1.50	16.2	431	19x1.5	7/0.52	0.6	1.50	17.1	442
24x1.5	1/1.38	0.6	1.50	18.8	535	24x1.5	7/0.52	0.6	1.70	20.1	567
27x1.5	1/1.38	0.6	1.70	19.6	607	27x1.5	7/0.52	0.6	1.70	20.7	622
30x1.5	1/1.38	0.6	1.70	20.2	663	30x1.5	7/0.52	0.6	1.70	21.4	680
37x1.5	1/1.38	0.6	1.70	21.8	795	37x1.5	7/0.52	0.6	1.70	23.0	814
44x1.5	1/1.38	0.6	1.70	24.3	935	44x1.5	7/0.52	0.6	1.70	25.8	958
48x1.5	1/1.38	0.6	1.70	24.7	1006	48x1.5	7/0.52	0.6	1.70	26.2	1030
52x1.5	1/1.38	0.6	1.70	25.4	1080	52x1.5	7/0.52	0.6	1.70	26.9	1105
61x1.5	1/1.38	0.6	1.70	26.9	1245	61x1.5	7/0.52	0.6	1.70	28.5	1273

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×2.5	1/1.78	0.7	1.20	9.1	102	2×2.5	7/0.68	0.7	1.20	9.6	107
3×2.5	1/1.78	0.7	1.20	9.6	132	3×2.5	7/0.68	0.7	1.20	10.1	139
4×2.5	1/1.78	0.7	1.20	10.4	165	4×2.5	7/0.68	0.7	1.20	11.0	173
5×2.5	1/1.78	0.7	1.20	11.3	198	5×2.5	7/0.68	0.7	1.20	12.0	207
6×2.5	1/1.78	0.7	1.20	12.2	231	6×2.5	7/0.68	0.7	1.50	13.6	260
7×2.5	1/1.78	0.7	1.20	12.2	258	7×2.5	7/0.68	0.7	1.50	13.6	289
8x2.5	1/1.78	0.7	1.50	14.3	314	8x2.5	7/0.68	0.7	1.50	15.2	329
10x2.5	1/1.78	0.7	1.50	16.0	382	10x2.5	7/0.68	0.7	1.50	17.1	400
12x2.5	1/1.78	0.7	1.50	16.5	441	12x2.5	7/0.68	0.7	1.50	17.6	461
14x2.5	1/1.78	0.7	1.50	17.3	502	14x2.5	7/0.68	0.7	1.50	18.5	525
16x2.5	1/1.78	0.7	1.50	18.2	564	16x2.5	7/0.68	0.7	1.70	19.9	608
19x2.5	1/1.78	0.7	1.70	19.6	672	19x2.5	7/0.68	0.7	1.70	20.9	702
24x2.5	1/1.78	0.7	1.70	22.8	836	24x2.5	7/0.68	0.7	1.70	24.3	873
27x2.5	1/1.78	0.7	1.70	23.3	922	27x2.5	7/0.68	0.7	1.70	24.9	963
30x2.5	1/1.78	0.7	1.70	24.1	1012	30x2.5	7/0.68	0.7	1.70	25.8	1056
37x2.5	1/1.78	0.7	1.70	26.0	1220	37x2.5	7/0.68	0.7	1.70	27.8	1273
44x2.5	1/1.78	0.7	2.00	29.7	1481	44x2.5	7/0.68	0.7	2.00	31.8	1546
48x2.5	1/1.78	0.7	2.00	30.2	1596	48x2.5	7/0.68	0.7	2.00	32.3	1666
52x2.5	1/1.78	0.7	2.00	31.0	1714	52x2.5	7/0.68	0.7	2.00	33.2	1788
61x2.5	1/1.78	0.7	2.00	32.9	1980	61x2.5	7/0.68	0.7	2.00	35.3	2065

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×4	1/2.25	0.7	1.20	10.0	136	2×4	7/0.85	0.7	1.20	10.6	141
3×4	1/2.25	0.7	1.20	10.6	181	3×4	7/0.85	0.7	1.20	11.2	187
4×4	1/2.25	0.7	1.20	11.5	229	4×4	7/0.85	0.7	1.20	12.3	236
5×4	1/2.25	0.7	1.50	13.2	295	5×4	7/0.85	0.7	1.50	14.0	304
6×4	1/2.25	0.7	1.50	14.3	345	6×4	7/0.85	0.7	1.50	15.2	355
7×4	1/2.25	0.7	1.50	14.3	387	7×4	7/0.85	0.7	1.50	15.2	398
8x4	1/2.25	0.7	1.50	15.9	441	8x4	7/0.85	0.7	1.50	16.9	453
10x4	1/2.25	0.7	1.50	17.9	539	10x4	7/0.85	0.7	1.70	19.5	572
12x4	1/2.25	0.7	1.50	18.5	627	12x4	7/0.85	0.7	1.70	20.1	663
14x4	1/2.25	0.7	1.70	19.8	736	14x4	7/0.85	0.7	1.70	21.1	756

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×6	1/2.77	0.7	1.20	11.0	181	2×6	7/1.04	0.7	1.20	11.7	185
3×6	1/2.77	0.7	1.20	11.7	247	3×6	7/1.04	0.7	1.50	13.1	269
4×6	1/2.77	0.7	1.50	13.4	333	4×6	7/1.04	0.7	1.50	14.2	339
5×6	1/2.77	0.7	1.50	14.6	403	5×6	7/1.04	0.7	1.50	15.5	410
6×6	1/2.77	0.7	1.50	15.8	473	6×6	7/1.04	0.7	1.50	16.9	481
7×6	1/2.77	0.7	1.50	15.8	535	7×6	7/1.04	0.7	1.50	16.9	543
8x6	1/2.77	0.7	1.50	17.7	610	8x6	7/1.04	0.7	1.50	18.9	619
10x6	1/2.77	0.7	1.70	20.4	769	10x6	7/1.04	0.7	1.70	21.8	781
12x6	1/2.77	0.7	1.70	21.0	897	12x6	7/1.04	0.7	1.70	22.5	909
14x6	1/2.77	0.7	1.70	22.1	1028	14x6	7/1.04	0.7	1.70	23.6	1042

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km
2×10	7/1.35	0.7	1.50	14.2	293
3×10	7/1.35	0.7	1.50	15.1	400
4×10	7/1.35	0.7	1.50	16.5	510
5×10	7/1.35	0.7	1.50	18.0	621
10×10	7/1.35	0.7	1.70	20.1	752
7×10	7/1.35	0.7	1.70	20.1	852
8x10	7/1.35	0.7	1.70	22.5	972
10x10	7/1.35	0.7	1.70	25.5	1197

Expand More

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
5×0.75	1/0.97	0.6	1.0	0.20	1.20	11.4	202	5×0.75	7/0.37	0.6	1.0	0.20	1.20	8.9	210
6×0.75	1/0.97	0.6	1.0	0.20	1.20	12.0	223	6×0.75	7/0.37	0.6	1.0	0.20	1.50	10.2	251
7×0.75	1/0.97	0.6	1.0	0.20	1.20	12.0	232	7×0.75	7/0.37	0.6	1.0	0.20	1.50	10.2	261
8x0.75	1/0.97	0.6	1.0	0.20	1.50	13.6	278	8x0.75	7/0.37	0.6	1.0	0.20	1.50	11.3	291
10x0.75	1/0.97	0.6	1.0	0.20	1.50	14.8	320	10x0.75	7/0.37	0.6	1.0	0.20	1.50	12.5	335
12x0.75	1/0.97	0.6	1.0	0.20	1.50	15.1	346	12x0.75	7/0.37	0.6	1.0	0.20	1.50	12.9	362
14x0.75	1/0.97	0.6	1.0	0.20	1.50	15.7	375	14x0.75	7/0.37	0.6	1.0	0.20	1.50	13.5	393
16x0.75	1/0.97	0.6	1.0	0.20	1.50	16.3	407	16x0.75	7/0.37	0.6	1.0	0.20	1.50	14.2	425
19x0.75	1/0.97	0.6	1.0	0.20	1.50	17.0	448	19x0.75	7/0.37	0.6	1.0	0.20	1.50	14.9	468
24x0.75	1/0.97	0.6	1.0	0.20	1.70	19.5	555	24x0.75	7/0.37	0.6	1.0	0.20	1.70	17.6	581
27x0.75	1/0.97	0.6	1.0	0.20	1.70	19.8	590	27x0.75	7/0.37	0.6	1.0	0.20	1.70	17.9	618
30x0.75	1/0.97	0.6	1.0	0.20	1.70	20.4	630	30x0.75	7/0.37	0.6	1.0	0.20	1.70	18.5	660
37x0.75	1/0.97	0.6	1.0	0.20	1.70	21.7	722	37x0.75	7/0.37	0.6	1.0	0.20	1.70	19.9	756
44x0.75	1/0.97	0.6	1.0	0.20	1.70	23.9	833	44x0.75	7/0.37	0.6	1.0	0.20	1.70	22.2	872
48x0.75	1/0.97	0.6	1.0	0.20	1.70	24.2	877	48x0.75	7/0.37	0.6	1.0	0.20	1.70	22.5	918
52x0.75	1/0.97	0.6	1.0	0.20	1.70	24.7	926	52x0.75	7/0.37	0.6	1.0	0.20	1.70	23.1	970
61x0.75	1/0.97	0.6	1.0	0.20	1.70	26.0	1038	61x0.75	7/0.37	0.6	1.0	0.20	1.70	24.5	1086

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
4×1	1/1.13	0.6	1.0	0.20	1.20	11.1	199	4×1	7/0.43	0.6	1.0	0.20	1.20	8.7	208
5×1	1/1.13	0.6	1.0	0.20	1.20	11.8	223	5×1	7/0.43	0.6	1.0	0.20	1.20	9.4	233
6×1	1/1.13	0.6	1.0	0.20	1.50	13.1	266	6×1	7/0.43	0.6	1.0	0.20	1.50	10.8	277
7×1	1/1.13	0.6	1.0	0.20	1.50	13.1	278	7×1	7/0.43	0.6	1.0	0.20	1.50	10.8	290
8x1	1/1.13	0.6	1.0	0.20	1.50	14.1	310	8x1	7/0.43	0.6	1.0	0.20	1.50	11.9	324
10x1	1/1.13	0.6	1.0	0.20	1.50	15.4	359	10x1	7/0.43	0.6	1.0	0.20	1.50	13.3	376
12x1	1/1.13	0.6	1.0	0.20	1.50	15.8	391	12x1	7/0.43	0.6	1.0	0.20	1.50	13.7	409
14x1	1/1.13	0.6	1.0	0.20	1.50	16.4	426	14x1	7/0.43	0.6	1.0	0.20	1.50	14.3	446
16x1	1/1.13	0.6	1.0	0.20	1.50	17.1	464	16x1	7/0.43	0.6	1.0	0.20	1.50	15.0	485
19x1	1/1.13	0.6	1.0	0.20	1.50	17.8	514	19x1	7/0.43	0.6	1.0	0.20	1.50	15.8	537
24x1	1/1.13	0.6	1.0	0.20	1.70	20.5	639	24x1	7/0.43	0.6	1.0	0.20	1.70	18.6	668
27x1	1/1.13	0.6	1.0	0.20	1.70	20.8	682	27x1	7/0.43	0.6	1.0	0.20	1.70	19.0	713
30x1	1/1.13	0.6	1.0	0.20	1.70	21.4	731	30x1	7/0.43	0.6	1.0	0.20	1.70	19.7	764
37x1	1/1.13	0.6	1.0	0.20	1.70	22.8	843	37x1	7/0.43	0.6	1.0	0.20	1.70	21.1	881
44x1	1/1.13	0.6	1.0	0.20	1.70	25.1	976	44x1	7/0.43	0.6	1.2	0.20	1.70	23.6	1047
48x1	1/1.13	0.6	1.0	0.20	1.70	25.5	1031	48x1	7/0.43	0.6	1.2	0.20	1.70	24.0	1105
52x1	1/1.13	0.6	1.2	0.20	1.70	26.5	1119	52x1	7/0.43	0.6	1.2	0.20	1.70	24.6	1169
61x1	1/1.13	0.6	1.2	0.20	1.70	27.9	1257	61x1	7/0.43	0.6	1.2	0.20	2.00	26.7	1355

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
3×1.5	1/1.38	0.6	1.0	0.20	1.20	11.1	200	3×1.5	7/0.52	0.6	1.0	0.20	1.20	8.7	208
4×1.5	1/1.38	0.6	1.0	0.20	1.20	11.7	229	4×1.5	7/0.52	0.6	1.0	0.20	1.20	9.4	238
5×1.5	1/1.38	0.6	1.0	0.20	1.50	13.1	227	5×1.5	7/0.52	0.6	1.0	0.20	1.20	10.2	269
6×1.5	1/1.38	0.6	1.0	0.20	1.50	13.8	309	6×1.5	7/0.52	0.6	1.0	0.20	1.50	11.6	321
7×1.5	1/1.38	0.6	1.0	0.20	1.50	13.8	326	7×1.5	7/0.52	0.6	1.0	0.20	1.50	11.6	339
8x1.5	1/1.38	0.6	1.0	0.20	1.50	15.0	366	8x1.5	7/0.52	0.6	1.0	0.20	1.50	12.8	380
10x1.5	1/1.38	0.6	1.0	0.20	1.50	16.4	428	10x1.5	7/0.52	0.6	1.0	0.20	1.50	14.3	444
12x1.5	1/1.38	0.6	1.0	0.20	1.50	16.8	470	12x1.5	7/0.52	0.6	1.0	0.20	1.50	14.8	487
14x1.5	1/1.38	0.6	1.0	0.20	1.50	17.5	516	14x1.5	7/0.52	0.6	1.0	0.20	1.50	15.5	535
16x1.5	1/1.38	0.6	1.0	0.20	1.50	18.2	565	16x1.5	7/0.52	0.6	1.0	0.20	1.70	16.7	603
19x1.5	1/1.38	0.6	1.0	0.20	1.50	19.0	631	19x1.5	7/0.52	0.6	1.0	0.20	1.70	17.5	672
24x1.5	1/1.38	0.6	1.0	0.20	1.70	22.0	786	24x1.5	7/0.52	0.6	1.0	0.20	1.70	20.3	814
27x1.5	1/1.38	0.6	1.0	0.20	1.70	22.4	845	27x1.5	7/0.52	0.6	1.0	0.20	1.70	20.7	874
30x1.5	1/1.38	0.6	1.0	0.20	1.70	23.0	910	30x1.5	7/0.52	0.6	1.0	0.20	1.70	21.4	940
37x1.5	1/1.38	0.6	1.0	0.20	1.70	24.6	1059	37x1.5	7/0.52	0.6	1.0	0.20	1.70	23.0	1094
44x1.5	1/1.38	0.6	1.2	0.20	1.70	27.5	1259	44x1.5	7/0.52	0.6	1.2	0.20	2.00	26.4	1342
48x1.5	1/1.38	0.6	1.2	0.20	1.70	27.9	1335	48x1.5	7/0.52	0.6	1.2	0.20	2.00	26.8	1420
52x1.5	1/1.38	0.6	1.2	0.20	2.00	29.2	1458	52x1.5	7/0.52	0.6	1.2	0.20	2.00	27.5	1505
61x1.5	1/1.38	0.6	1.2	0.20	2.00	30.7	1645	61x1.5	7/0.52	0.6	1.2	0.20	2.00	29.1	1697

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×2.5	1/1.78	0.7	1.0	0.20	1.20	11.9	219	2×2.5	7/0.68	0.7	1.0	0.20	1.50	10.2	248
3×2.5	1/1.78	0.7	1.0	0.20	1.50	13.0	273	3×2.5	7/0.68	0.7	1.0	0.20	1.50	10.7	287
4×2.5	1/1.78	0.7	1.0	0.20	1.50	13.8	317	4×2.5	7/0.68	0.7	1.0	0.20	1.50	11.6	333
5×2.5	1/1.78	0.7	1.0	0.20	1.50	14.7	362	5×2.5	7/0.68	0.7	1.0	0.20	1.50	12.6	381
6×2.5	1/1.78	0.7	1.0	0.20	1.50	15.6	408	6×2.5	7/0.68	0.7	1.0	0.20	1.50	13.6	429
7×2.5	1/1.78	0.7	1.0	0.20	1.50	15.6	435	7×2.5	7/0.68	0.7	1.0	0.20	1.50	13.6	458
8x2.5	1/1.78	0.7	1.0	0.20	1.50	17.1	491	8x2.5	7/0.68	0.7	1.0	0.20	1.50	15.2	516
10x2.5	1/1.78	0.7	1.0	0.20	1.50	18.8	580	10x2.5	7/0.68	0.7	1.0	0.20	1.70	17.5	629
12x2.5	1/1.78	0.7	1.0	0.20	1.70	19.7	663	12x2.5	7/0.68	0.7	1.0	0.20	1.70	18.0	691
14x2.5	1/1.78	0.7	1.0	0.20	1.70	20.5	734	14x2.5	7/0.68	0.7	1.0	0.20	1.70	18.9	772
16x2.5	1/1.78	0.7	1.0	0.20	1.70	21.4	808	16x2.5	7/0.68	0.7	1.0	0.20	1.70	19.9	850
19x2.5	1/1.78	0.7	1.0	0.20	1.70	22.4	910	19x2.5	7/0.68	0.7	1.0	0.20	1.70	20.9	956
24x2.5	1/1.78	0.7	1.0	0.20	1.70	25.6	1113	24x2.5	7/0.68	0.7	1.0	0.20	1.70	24.3	1169
27x2.5	1/1.78	0.7	1.0	0.20	1.70	26.1	1205	27x2.5	7/0.68	0.7	1.0	0.20	1.70	24.9	1265
30x2.5	1/1.78	0.7	1.0	0.20	1.70	26.9	1304	30x2.5	7/0.68	0.7	1.0	0.20	2.00	26.4	1410
37x2.5	1/1.78	0.7	1.0	0.20	2.00	29.4	1576	37x2.5	7/0.68	0.7	1.0	0.20	2.00	28.4	1654
44x2.5	1/1.78	0.7	1.2	0.20	2.00	32.9	1872	44x2.5	7/0.68	0.7	1.2	0.50	2.00	31.8	2316
48x2.5	1/1.78	0.7	1.2	0.20	2.00	33.4	1992	48x2.5	7/0.68	0.7	1.2	0.50	2.00	32.3	2448
52x2.5	1/1.78	0.7	1.2	0.20	2.00	34.2	2121	52x2.5	7/0.68	0.7	1.2	0.50	2.00	33.2	2592
61x2.5	1/1.78	0.7	1.2	0.50	2.00	37.3	2776	61x2.5	7/0.68	0.7	1.2	0.50	2.00	35.3	2918

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×4	1/2.25	0.7	1.0	0.20	1.50	13.4	283	2×4	7/0.85	0.7	1.0	0.20	1.50	14.0	296
3×4	1/2.25	0.7	1.0	0.20	1.50	14.0	336	3×4	7/0.85	0.7	1.0	0.20	1.50	14.6	350
4×4	1/2.25	0.7	1.0	0.20	1.50	14.9	396	4×4	7/0.85	0.7	1.0	0.20	1.50	15.7	413
5×4	1/2.25	0.7	1.0	0.20	1.50	16.0	458	5×4	7/0.85	0.7	1.0	0.20	1.50	16.8	477
6×4	1/2.25	0.7	1.0	0.20	1.50	17.1	521	6×4	7/0.85	0.7	1.0	0.20	1.50	18.0	542
7×4	1/2.25	0.7	1.0	0.20	1.50	17.1	563	7×4	7/0.85	0.7	1.0	0.20	1.50	18.0	585
8x4	1/2.25	0.7	1.0	0.20	1.50	18.7	637	8x4	7/0.85	0.7	1.0	0.20	1.70	20.1	681
10x4	1/2.25	0.7	1.0	0.20	1.70	21.1	779	10x4	7/0.85	0.7	1.0	0.20	1.70	22.3	810
12x4	1/2.25	0.7	1.0	0.20	1.70	21.7	875	12x4	7/0.85	0.7	1.0	0.20	1.70	22.9	908
14x4	1/2.25	0.7	1.0	0.20	1.70	22.6	977	14x4	7/0.85	0.7	1.0	0.20	1.70	23.9	1013

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×6	1/2.76	0.7	1.0	0.20	1.50	14.4	341	2×6	7/1.04	0.7	1.0	0.20	1.50	12.3	356
3×6	1/2.76	0.7	1.0	0.20	1.50	15.1	415	3×6	7/1.04	0.7	1.0	0.20	1.50	13.1	431
4×6	1/2.76	0.7	1.0	0.20	1.50	16.2	497	4×6	7/1.04	0.7	1.0	0.20	1.50	14.2	515
5×6	1/2.76	0.7	1.0	0.20	1.50	17.3	580	5×6	7/1.04	0.7	1.0	0.20	1.50	15.5	601
6×6	1/2.76	0.7	1.0	0.20	1.50	18.6	666	6×6	7/1.04	0.7	1.0	0.20	1.70	17.3	708
7×6	1/2.76	0.7	1.0	0.20	1.50	18.6	726	7×6	7/1.04	0.7	1.0	0.20	1.70	17.3	769
8x6	1/2.76	0.7	1.0	0.20	1.70	20.9	843	8x6	7/1.04	0.7	1.0	0.20	1.70	19.3	872
10x6	1/2.76	0.7	1.0	0.20	1.70	23.1	1012	10x6	7/1.04	0.7	1.0	0.20	1.70	21.8	1046
12x6	1/2.76	0.7	1.0	0.20	1.70	23.8	1147	12x6	7/1.04	0.7	1.0	0.20	1.70	22.5	1183
14x6	1/2.76	0.7	1.0	0.20	1.70	24.8	1290	14x6	7/1.04	0.7	1.0	0.20	1.70	23.6	1329

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Thickness of Steel Tape	Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×10	7/1.35	0.7	1.0	0.20	1.50	14.2	469
3×10	7/1.35	0.7	1.0	0.20	1.50	15.1	586
4×10	7/1.35	0.7	1.0	0.20	1.70	16.9	732
5×10	7/1.35	0.7	1.0	0.20	1.70	18.4	863
10×10	7/1.35	0.7	1.0	0.20	1.70	20.1	996
7×10	7/1.35	0.7	1.0	0.20	1.70	20.1	1096
8x10	7/1.35	0.7	1.0	0.20	1.70	22.5	1246
10x10	7/1.35	0.7	1.0	0.20	1.70	25.5	1507

Expand More

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
3x0.75	1/0.97	0.6	1.0	0.80	1.20	11.0	227	3x0.75	7/0.37	0.6	1.0	0.80	1.20	11.3	235
4x0.75	1/0.97	0.6	1.0	0.80	1.20	11.6	250	4x0.75	7/0.37	0.6	1.0	0.80	1.20	11.9	260
5×0.75	1/0.97	0.6	1.0	0.80	1.20	12.2	275	5×0.75	7/0.37	0.6	1.0	0.80	1.50	13.1	305
6×0.75	1/0.97	0.6	1.0	0.80	1.50	13.4	319	6×0.75	7/0.37	0.6	1.0	0.80	1.50	13.8	333
7×0.75	1/0.97	0.6	1.0	0.80	1.50	13.4	329	7×0.75	7/0.37	0.6	1.0	0.80	1.50	13.8	343
8x0.75	1/0.97	0.6	1.0	0.80	1.50	14.4	364	8x0.75	7/0.37	0.6	1.0	1.25	1.50	15.8	487
10x0.75	1/0.97	0.6	1.0	1.25	1.50	16.5	530	10x0.75	7/0.37	0.6	1.0	1.25	1.50	17.0	554
12x0.75	1/0.97	0.6	1.0	1.25	1.50	16.8	562	12x0.75	7/0.37	0.6	1.0	1.25	1.50	17.4	586
14x0.75	1/0.97	0.6	1.0	1.25	1.50	17.4	599	14x0.75	7/0.37	0.6	1.0	1.25	1.50	18.0	626
16x0.75	1/0.97	0.6	1.0	1.25	1.50	18.0	640	16x0.75	7/0.37	0.6	1.0	1.25	1.50	18.7	669
19x0.75	1/0.97	0.6	1.0	1.25	1.50	18.7	691	19x0.75	7/0.37	0.6	1.0	1.25	1.70	19.8	741
24x0.75	1/0.97	0.6	1.0	1.60	1.70	21.9	957	24x0.75	7/0.37	0.6	1.0	1.60	1.70	22.8	1001
27x0.75	1/0.97	0.6	1.0	1.60	1.70	22.2	999	27x0.75	7/0.37	0.6	1.0	1.60	1.70	23.1	1045
30x0.75	1/0.97	0.6	1.0	1.60	1.70	22.8	1051	30x0.75	7/0.37	0.6	1.0	1.60	1.70	23.7	1100
37x0.75	1/0.97	0.6	1.0	1.60	1.70	24.1	1171	37x0.75	7/0.37	0.6	1.0	1.60	1.70	25.1	1227
44x0.75	1/0.97	0.6	1.0	1.60	1.70	26.3	1329	44x0.75	7/0.37	0.6	1.0	1.60	1.70	27.4	1393
48x0.75	1/0.97	0.6	1.0	1.60	1.70	26.6	1381	48x0.75	7/0.37	0.6	1.0	1.60	1.70	27.7	1447
52x0.75	1/0.97	0.6	1.0	1.60	1.70	27.6	1443	52x0.75	7/0.37	0.6	1.0	1.60	1.70	28.3	1512
61x0.75	1/0.97	0.6	1.0	1.60	2.00	29.0	1623	61x0.75	7/0.37	0.6	1.0	1.60	2.00	30.3	1701

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2x1	1/1.13	0.6	1.0	0.80	1.20	11.0	222	2x1	7/0.43	0.6	1.0	0.80	1.20	11.3	231
3x1	1/1.13	0.6	1.0	0.80	1.20	11.3	243	3x1	7/0.43	0.6	1.0	0.80	1.20	11.7	253
4×1	1/1.13	0.6	1.0	0.80	1.20	11.9	271	4×1	7/0.43	0.6	1.0	0.80	1.20	12.3	282
5×1	1/1.13	0.6	1.0	0.80	1.50	13.2	317	5×1	7/0.43	0.6	1.0	0.80	1.50	13.6	331
6×1	1/1.13	0.6	1.0	0.80	1.50	13.9	348	6×1	7/0.43	0.6	1.0	0.80	1.50	14.4	363
7×1	1/1.13	0.6	1.0	0.80	1.50	13.9	360	7×1	7/0.43	0.6	1.0	0.80	1.50	14.4	376
8x1	1/1.13	0.6	1.0	1.25	1.50	15.8	510	8x1	7/0.43	0.6	1.0	1.25	1.50	16.4	533
10x1	1/1.13	0.6	1.0	1.25	1.50	17.1	579	10x1	7/0.43	0.6	1.0	1.25	1.50	17.8	606
12x1	1/1.13	0.6	1.0	1.25	1.50	17.5	617	12x1	7/0.43	0.6	1.0	1.25	1.50	18.2	645
14x1	1/1.13	0.6	1.0	1.25	1.50	18.1	661	14x1	7/0.43	0.6	1.0	1.25	1.50	18.8	692
16x1	1/1.13	0.6	1.0	1.25	1.50	18.8	709	16x1	7/0.43	0.6	1.0	1.25	1.70	19.9	761
19x1	1/1.13	0.6	1.0	1.25	1.70	19.9	788	19x1	7/0.43	0.6	1.0	1.25	1.70	20.7	825
24x1	1/1.13	0.6	1.0	1.60	1.70	22.9	1061	24x1	7/0.43	0.6	1.0	1.60	1.70	23.8	1112
27x1	1/1.13	0.6	1.0	1.60	1.70	23.2	1112	27x1	7/0.43	0.6	1.0	1.60	1.70	24.2	1165
30x1	1/1.13	0.6	1.0	1.60	1.70	23.8	1174	30x1	7/0.43	0.6	1.0	1.60	1.70	24.9	1230
37x1	1/1.13	0.6	1.0	1.60	1.70	25.2	1317	37x1	7/0.43	0.6	1.0	1.60	1.70	26.3	1380
44x1	1/1.13	0.6	1.0	1.60	1.70	27.5	1501	44x1	7/0.43	0.6	1.2	1.60	2.00	29.8	1651
48x1	1/1.13	0.6	1.0	1.60	1.70	27.9	1564	48x1	7/0.43	0.6	1.2	1.60	2.00	30.2	1717
52x1	1/1.13	0.6	1.2	1.60	2.00	29.5	1715	52x1	7/0.43	0.6	1.2	1.60	2.00	30.8	1796
61x1	1/1.13	0.6	1.2	1.60	2.00	30.9	1885	61x1	7/0.43	0.6	1.2	2.00	2.00	33.1	2193

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2x1.5	1/1.38	0.6	1.0	0.80	1.20	11.5	244	2x1.5	7/0.52	0.6	1.0	0.80	1.20	11.8	254
3×1.5	1/1.38	0.6	1.0	0.80	1.20	11.9	272	3×1.5	7/0.52	0.6	1.0	0.80	1.20	12.3	282
4×1.5	1/1.38	0.6	1.0	0.80	1.50	13.1	324	4×1.5	7/0.52	0.6	1.0	0.80	1.50	13.6	336
5×1.5	1/1.38	0.6	1.0	0.80	1.50	13.9	360	5×1.5	7/0.52	0.6	1.0	0.80	1.50	14.4	374
6×1.5	1/1.38	0.6	1.0	1.25	1.50	15.5	505	6×1.5	7/0.52	0.6	1.0	1.25	1.50	16.1	525
7×1.5	1/1.38	0.6	1.0	1.25	1.50	15.5	522	7×1.5	7/0.52	0.6	1.0	1.25	1.50	16.1	542
8x1.5	1/1.38	0.6	1.0	1.25	1.50	16.7	580	8x1.5	7/0.52	0.6	1.0	1.25	1.50	17.3	603
10x1.5	1/1.38	0.6	1.0	1.25	1.50	18.1	663	10x1.5	7/0.52	0.6	1.0	1.25	1.50	18.8	691
12x1.5	1/1.38	0.6	1.0	1.25	1.50	18.5	712	12x1.5	7/0.52	0.6	1.0	1.25	1.70	19.7	759
14x1.5	1/1.38	0.6	1.0	1.25	1.70	19.6	786	14x1.5	7/0.52	0.6	1.0	1.25	1.70	20.4	818
16x1.5	1/1.38	0.6	1.0	1.25	1.70	20.3	847	16x1.5	7/0.52	0.6	1.0	1.25	1.70	21.2	882
19x1.5	1/1.38	0.6	1.0	1.60	1.70	21.8	1047	19x1.5	7/0.52	0.6	1.0	1.60	1.70	22.7	1090
24x1.5	1/1.38	0.6	1.0	1.60	1.70	24.4	1242	24x1.5	7/0.52	0.6	1.0	1.60	1.70	25.5	1293
27x1.5	1/1.38	0.6	1.0	1.60	1.70	24.8	1309	27x1.5	7/0.52	0.6	1.0	1.60	1.70	25.9	1362
30x1.5	1/1.38	0.6	1.0	1.60	1.70	25.4	1388	30x1.5	7/0.52	0.6	1.0	1.60	1.70	26.6	1444
37x1.5	1/1.38	0.6	1.0	1.60	1.70	27.0	1572	37x1.5	7/0.52	0.6	1.0	1.60	1.70	28.2	1634
44x1.5	1/1.38	0.6	1.2	1.60	2.00	30.5	1879	44x1.5	7/0.52	0.6	1.2	1.60	2.00	32.0	1954
48x1.5	1/1.38	0.6	1.2	1.60	2.00	30.9	1964	48x1.5	7/0.52	0.6	1.2	2.00	2.00	33.2	2260
52x1.5	1/1.38	0.6	1.2	1.60	2.00	31.6	2062	52x1.5	7/0.52	0.6	1.2	2.00	2.00	33.9	2366
61x1.5	1/1.38	0.6	1.2	2.00	2.00	33.9	2507	61x1.5	7/0.52	0.6	1.2	2.00	2.20	35.9	2640

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×2.5	1/1.78	0.7	1.0	0.80	1.50	13.3	314	2×2.5	7/0.68	0.7	1.0	0.80	1.50	13.8	330
3×2.5	1/1.78	0.7	1.0	0.80	1.50	13.8	355	3×2.5	7/0.68	0.7	1.0	0.80	1.50	14.3	373
4×2.5	1/1.78	0.7	1.0	1.25	1.50	15.5	512	4×2.5	7/0.68	0.7	1.0	1.25	1.50	16.1	538
5×2.5	1/1.78	0.7	1.0	1.25	1.50	16.4	570	5×2.5	7/0.68	0.7	1.0	1.25	1.50	17.1	600
6×2.5	1/1.78	0.7	1.0	1.25	1.50	17.3	631	6×2.5	7/0.68	0.7	1.0	1.25	1.50	18.1	665
7×2.5	1/1.78	0.7	1.0	1.25	1.50	17.3	659	7×2.5	7/0.68	0.7	1.0	1.25	1.50	18.1	693
8x2.5	1/1.78	0.7	1.0	1.25	1.50	18.8	736	8x2.5	7/0.68	0.7	1.0	1.25	1.70	20.1	795
10x2.5	1/1.78	0.7	1.0	1.60	1.70	21.6	992	10x2.5	7/0.68	0.7	1.0	1.60	1.70	22.7	1047
12x2.5	1/1.78	0.7	1.0	1.60	1.70	22.1	1069	12x2.5	7/0.68	0.7	1.0	1.60	1.70	23.2	1127
14x2.5	1/1.78	0.7	1.0	1.60	1.70	22.9	1158	14x2.5	7/0.68	0.7	1.0	1.60	1.70	24.1	1221
16x2.5	1/1.78	0.7	1.0	1.60	1.70	23.8	1252	16x2.5	7/0.68	0.7	1.0	1.60	1.70	25.1	1320
19x2.5	1/1.78	0.7	1.0	1.60	1.70	24.8	1375	19x2.5	7/0.68	0.7	1.0	1.60	1.70	26.1	1450
24x2.5	1/1.78	0.7	1.0	1.60	1.70	28.0	1647	24x2.5	7/0.68	0.7	1.0	1.60	2.00	30.1	1780
27x2.5	1/1.78	0.7	1.0	1.60	2.00	29.1	1791	27x2.5	7/0.68	0.7	1.0	1.60	2.00	30.7	1888
30x2.5	1/1.78	0.7	1.0	1.60	2.00	29.9	1910	30x2.5	7/0.68	0.7	1.0	1.60	2.00	31.6	2013
37x2.5	1/1.78	0.7	1.0	1.60	2.00	31.8	2184	37x2.5	7/0.68	0.7	1.0	2.00	2.20	34.8	2562
44x2.5	1/1.78	0.7	1.2	2.00	2.20	36.5	2833	44x2.5	7/0.68	0.7	1.2	2.00	2.20	38.6	2988
48x2.5	1/1.78	0.7	1.2	2.00	2.20	37.0	2968	48x2.5	7/0.68	0.7	1.2	2.00	2.20	39.1	3129
52x2.5	1/1.78	0.7	1.2	2.00	2.20	37.8	3122	52x2.5	7/0.68	0.7	1.2	2.00	2.20	40.0	3291
61x2.5	1/1.78	0.7	1.2	2.00	2.20	39.7	3469	61x2.5	7/0.68	0.7	1.2	2.00	2.20	42.1	3656

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Dia. of Steel Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×4	1/2.25	0.7	1.0	0.80	1.50	14.2	368	2×4	7/0.85	0.7	1.0	1.25	1.50	15.7	494
3×4	1/2.25	0.7	1.0	1.25	1.50	15.7	534	3×4	7/0.85	0.7	1.0	1.25	1.50	16.3	558
4×4	1/2.25	0.7	1.0	1.25	1.50	16.6	609	4×4	7/0.85	0.7	1.0	1.25	1.50	17.4	637
5×4	1/2.25	0.7	1.0	1.25	1.50	17.7	686	5×4	7/0.85	0.7	1.0	1.25	1.50	18.5	718
6×4	1/2.25	0.7	1.0	1.25	1.50	18.8	767	6×4	7/0.85	0.7	1.0	1.25	1.70	20.1	820
7×4	1/2.25	0.7	1.0	1.25	1.50	18.8	809	7×4	7/0.85	0.7	1.0	1.25	1.70	20.1	863
8x4	1/2.25	0.7	1.0	1.25	1.70	20.8	927	8x4	7/0.85	0.7	1.0	1.60	1.70	22.5	1091
10x4	1/2.25	0.7	1.0	1.60	1.70	23.5	1216	10x4	7/0.85	0.7	1.0	1.60	1.70	24.7	1272
12x4	1/2.25	0.7	1.0	1.60	1.70	24.1	1324	12x4	7/0.85	0.7	1.0	1.60	1.70	25.3	1384
14x4	1/2.25	0.7	1.0	1.60	1.70	25.0	1446	14x4	7/0.85	0.7	1.0	1.60	1.70	26.3	1511

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Diameter of Steel Wire	Sheath Thickness	Approx. Overall Diameter	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Diameter of Steel Wire	Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×6	1/2.76	0.7	1.0	1.25	1.50	16.1	545	2×6	7/1.04	0.7	1.0	1.25	1.50	16.8	571
3×6	1/2.76	0.7	1.0	1.25	1.50	16.8	630	3×6	7/1.04	0.7	1.0	1.25	1.50	17.6	658
4×6	1/2.76	0.7	1.0	1.25	1.50	17.9	728	4×6	7/1.04	0.7	1.0	1.25	1.50	18.7	761
5×6	1/2.76	0.7	1.0	1.25	1.70	19.4	848	5×6	7/1.04	0.7	1.0	1.25	1.70	20.4	885
6×6	1/2.76	0.7	1.0	1.25	1.70	20.7	954	6×6	7/1.04	0.7	1.0	1.25	1.70	21.8	995
7×6	1/2.76	0.7	1.0	1.25	1.70	20.7	1015	7×6	7/1.04	0.7	1.0	1.25	1.70	21.8	1057
8x6	1/2.76	0.7	1.0	1.60	1.70	23.3	1274	8x6	7/1.04	0.7	1.0	1.60	1.70	24.5	1325
10x6	1/2.76	0.7	1.0	1.60	1.70	25.5	1493	10x6	7/1.04	0.7	1.0	1.60	1.70	27.0	1558
12x6	1/2.76	0.7	1.0	1.60	1.70	26.2	1643	12x6	7/1.04	0.7	1.0	1.60	1.70	27.7	1711
14x6	1/2.76	0.7	1.0	1.60	1.70	27.2	1809	14x6	7/1.04	0.7	1.0	1.60	2.00	29.4	1923

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Inner Sheath	Diameter of Steel Wire	Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	mm	kg/km
2×10	7/1.35	0.7	1.0	1.25	1.50	18.7	714
3×10	7/1.35	0.7	1.0	1.25	1.70	20.0	863
4×10	7/1.35	0.7	1.0	1.60	1.70	22.1	1137
5×10	7/1.35	0.7	1.0	1.60	1.70	23.6	1301
10×10	7/1.35	0.7	1.0	1.60	1.70	25.3	1470
7×10	7/1.35	0.7	1.0	1.60	1.70	25.3	1570
8x10	7/1.35	0.7	1.0	1.60	1.70	27.7	1774
10x10	7/1.35	0.7	1.0	1.60	2.00	31.3	2145

Expand More

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×0.75	1/0.97	0.6	0.15	1.20	7.5	75	2×0.75	7/0.37	0.6	0.15	1.20	7.7	78
3×0.75	1/0.97	0.6	0.15	1.20	7.8	87	3×0.75	7/0.37	0.6	0.15	1.20	8.1	92
4×0.75	1/0.97	0.6	0.15	1.20	8.4	103	4×0.75	7/0.37	0.6	0.15	1.20	8.7	108
5×0.75	1/0.97	0.6	0.15	1.20	9.0	118	5×0.75	7/0.37	0.6	0.15	1.20	9.4	124
6×0.75	1/0.97	0.6	0.15	1.20	9.6	134	6×0.75	7/0.37	0.6	0.15	1.20	10.1	141
7×0.75	1/0.97	0.6	0.15	1.20	9.6	144	7×0.75	7/0.37	0.6	0.15	1.20	10.1	150
8x0.75	1/0.97	0.6	0.15	1.20	10.6	163	8x0.75	7/0.37	0.6	0.15	1.20	11.1	171
10x0.75	1/0.97	0.6	0.15	1.20	11.8	194	10x0.75	7/0.37	0.6	0.15	1.20	12.4	203
12x0.75	1/0.97	0.6	0.15	1.20	12.1	216	12x0.75	7/0.37	0.6	0.15	1.50	13.3	245
14x0.75	1/0.97	0.6	0.20	1.50	13.5	274	14x0.75	7/0.37	0.6	0.20	1.50	14.1	287
16x0.75	1/0.97	0.6	0.20	1.50	14.1	301	16x0.75	7/0.37	0.6	0.20	1.50	14.8	316
19x0.75	1/0.97	0.6	0.20	1.50	14.8	338	19x0.75	7/0.37	0.6	0.20	1.50	15.5	354
24x0.75	1/0.97	0.6	0.20	1.50	16.9	413	24x0.75	7/0.37	0.6	0.20	1.50	17.8	433
27x0.75	1/0.97	0.6	0.20	1.50	17.3	446	27x0.75	7/0.37	0.6	0.20	1.50	18.1	467
30x0.75	1/0.97	0.6	0.20	1.50	17.8	481	30x0.75	7/0.37	0.6	0.20	1.50	18.7	504
37x0.75	1/0.97	0.6	0.20	1.70	19.5	582	37x0.75	7/0.37	0.6	0.20	1.70	20.5	609
44x0.75	1/0.97	0.6	0.20	1.70	21.7	678	44x0.75	7/0.37	0.6	0.20	1.70	22.8	710
48x0.75	1/0.97	0.6	0.20	1.70	22.0	720	48x0.75	7/0.37	0.6	0.20	1.70	23.1	754
52x0.75	1/0.97	0.6	0.20	1.70	22.6	766	52x0.75	7/0.37	0.6	0.20	1.70	23.7	802
61x0.75	1/0.97	0.6	0.20	1.70	23.9	869	61x0.75	7/0.37	0.6	0.25	1.70	25.3	940

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×1	1/1.13	0.6	0.15	1.20	7.8	83	2×1	7/0.43	0.6	0.15	1.20	8.1	87
3×1	1/1.13	0.6	0.15	1.20	8.2	99	3×1	7/0.43	0.6	0.15	1.20	8.5	104
4×1	1/1.13	0.6	0.15	1.20	8.8	117	4×1	7/0.43	0.6	0.15	1.20	9.1	123
5×1	1/1.13	0.6	0.15	1.20	9.4	136	5×1	7/0.43	0.6	0.15	1.20	9.8	142
6×1	1/1.13	0.6	0.15	1.20	10.1	155	6×1	7/0.43	0.6	0.15	1.20	10.6	162
7×1	1/1.13	0.6	0.15	1.20	10.1	167	7×1	7/0.43	0.6	0.15	1.20	10.6	175
8x1	1/1.13	0.6	0.15	1.20	11.2	190	8x1	7/0.43	0.6	0.15	1.20	11.7	199
10x1	1/1.13	0.6	0.15	1.50	13.0	245	10x1	7/0.43	0.6	0.20	1.50	13.9	272
12x1	1/1.13	0.6	0.15	1.50	13.4	273	12x1	7/0.43	0.6	0.20	1.50	14.3	302
14x1	1/1.13	0.6	0.20	1.50	14.2	321	14x1	7/0.43	0.6	0.20	1.50	14.9	335
16x1	1/1.13	0.6	0.20	1.50	14.9	353	16x1	7/0.43	0.6	0.20	1.50	15.6	370
19x1	1/1.13	0.6	0.20	1.50	15.6	399	19x1	7/0.43	0.6	0.20	1.50	16.4	417
24x1	1/1.13	0.6	0.20	1.50	17.9	489	24x1	7/0.43	0.6	0.20	1.50	18.9	511
27x1	1/1.13	0.6	0.20	1.50	18.2	530	27x1	7/0.43	0.6	0.20	1.70	19.6	572
30x1	1/1.13	0.6	0.20	1.50	18.9	574	30x1	7/0.43	0.6	0.20	1.70	20.3	619
37x1	1/1.13	0.6	0.20	1.70	20.6	696	37x1	7/0.43	0.6	0.20	1.70	21.8	726
44x1	1/1.13	0.6	0.20	1.70	23.0	813	44x1	7/0.43	0.6	0.25	1.70	24.4	879
48x1	1/1.13	0.6	0.20	1.70	23.3	866	48x1	7/0.43	0.6	0.25	1.70	24.8	934
52x1	1/1.13	0.6	0.20	1.70	23.9	923	52x1	7/0.43	0.6	0.25	1.70	25.5	994
61x1	1/1.13	0.6	0.25	1.70	25.5	1082	61x1	7/0.43	0.6	0.25	1.70	26.9	1129

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×1.5	1/1.38	0.6	0.15	1.20	8.3	98	2×1.5	7/0.52	0.6	0.15	1.20	8.6	102
3×1.5	1/1.38	0.6	0.15	1.20	8.7	119	3×1.5	7/0.52	0.6	0.15	1.20	9.1	124
4×1.5	1/1.38	0.6	0.15	1.20	9.4	143	4×1.5	7/0.52	0.6	0.15	1.20	9.8	148
5×1.5	1/1.38	0.6	0.15	1.20	10.1	167	5×1.5	7/0.52	0.6	0.15	1.20	10.6	173
6×1.5	1/1.38	0.6	0.15	1.20	10.9	192	6×1.5	7/0.52	0.6	0.15	1.20	11.4	199
7×1.5	1/1.38	0.6	0.15	1.20	10.9	209	7×1.5	7/0.52	0.6	0.15	1.20	11.4	216
8x1.5	1/1.38	0.6	0.15	1.20	12.0	238	8x1.5	7/0.52	0.6	0.15	1.50	13.2	264
10x1.5	1/1.38	0.6	0.20	1.50	14.2	322	10x1.5	7/0.52	0.6	0.20	1.50	15.0	333
12x1.5	1/1.38	0.6	0.20	1.50	14.7	361	12x1.5	7/0.52	0.6	0.20	1.50	15.4	374
14x1.5	1/1.38	0.6	0.20	1.50	15.3	403	14x1.5	7/0.52	0.6	0.20	1.50	16.1	417
16x1.5	1/1.38	0.6	0.20	1.50	16.0	447	16x1.5	7/0.52	0.6	0.20	1.50	16.9	462
19x1.5	1/1.38	0.6	0.20	1.50	16.8	508	19x1.5	7/0.52	0.6	0.20	1.50	17.7	524
24x1.5	1/1.38	0.6	0.20	1.70	19.8	645	24x1.5	7/0.52	0.6	0.20	1.70	20.9	665
27x1.5	1/1.38	0.6	0.20	1.70	20.2	701	27x1.5	7/0.52	0.6	0.20	1.70	21.3	723
30x1.5	1/1.38	0.6	0.20	1.70	20.9	761	30x1.5	7/0.52	0.6	0.20	1.70	22.0	784
37x1.5	1/1.38	0.6	0.20	1.70	22.4	901	37x1.5	7/0.52	0.6	0.20	1.70	23.6	928
44x1.5	1/1.38	0.6	0.25	1.70	25.2	1087	44x1.5	7/0.52	0.6	0.25	1.70	26.6	1120
48x1.5	1/1.38	0.6	0.25	1.70	25.5	1161	48x1.5	7/0.52	0.6	0.25	1.70	27.0	1195
52x1.5	1/1.38	0.6	0.25	1.70	26.2	1239	52x1.5	7/0.52	0.6	0.25	1.70	27.7	1275
61x1.5	1/1.38	0.6	0.25	1.70	27.7	1415	61x1.5	7/0.52	0.6	0.25	2.00	30.0	1497

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×2.5	1/1.78	0.7	0.15	1.20	9.5	131	2×2.5	7/0.68	0.7	0.15	1.20	10.0	138
3×2.5	1/1.78	0.7	0.15	1.20	10.0	164	3×2.5	7/0.68	0.7	0.15	1.20	10.6	173
4×2.5	1/1.78	0.7	0.15	1.20	10.8	200	4×2.5	7/0.68	0.7	0.15	1.20	11.4	210
5×2.5	1/1.78	0.7	0.15	1.20	11.7	236	5×2.5	7/0.68	0.7	0.15	1.50	13.0	266
6×2.5	1/1.78	0.7	0.15	1.50	13.3	292	6×2.5	7/0.68	0.7	0.20	1.50	14.2	323
7×2.5	1/1.78	0.7	0.15	1.50	13.3	319	7×2.5	7/0.68	0.7	0.20	1.50	14.2	352
8x2.5	1/1.78	0.7	0.20	1.50	14.9	381	8x2.5	7/0.68	0.7	0.20	1.50	15.8	400
10x2.5	1/1.78	0.7	0.20	1.50	16.6	458	10x2.5	7/0.68	0.7	0.20	1.50	17.7	482
12x2.5	1/1.78	0.7	0.20	1.50	17.1	520	12x2.5	7/0.68	0.7	0.20	1.50	18.2	546
14x2.5	1/1.78	0.7	0.20	1.50	17.9	585	14x2.5	7/0.68	0.7	0.20	1.70	19.5	633
16x2.5	1/1.78	0.7	0.20	1.50	18.9	652	16x2.5	7/0.68	0.7	0.20	1.70	20.5	704
19x2.5	1/1.78	0.7	0.20	1.70	20.2	766	19x2.5	7/0.68	0.7	0.20	1.70	21.5	804
24x2.5	1/1.78	0.7	0.20	1.70	23.4	948	24x2.5	7/0.68	0.7	0.25	1.70	25.2	1025
27x2.5	1/1.78	0.7	0.20	1.70	23.9	1037	27x2.5	7/0.68	0.7	0.25	1.70	25.7	1119
30x2.5	1/1.78	0.7	0.25	1.70	24.9	1162	30x2.5	7/0.68	0.7	0.25	1.70	26.6	1218
37x2.5	1/1.78	0.7	0.20	1.70	26.6	1350	37x2.5	7/0.68	0.7	0.20	2.00	29.0	1454
44x2.5	1/1.78	0.7	0.25	2.00	30.6	1668	44x2.5	7/0.68	0.7	0.25	2.00	32.6	1747
48x2.5	1/1.78	0.7	0.25	2.00	31.0	1786	48x2.5	7/0.68	0.7	0.25	2.00	33.2	1870
52x2.5	1/1.78	0.7	0.25	2.00	31.9	1910	52x2.5	7/0.68	0.7	0.25	2.20	34.5	2032
61x2.5	1/1.78	0.7	0.25	2.00	33.7	2189	61x2.5	7/0.68	0.7	0.30	2.20	36.7	2371

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×4	1/2.25	0.7	0.15	1.20	10.4	169	2×4	7/0.85	0.7	0.15	1.20	11.0	177
3×4	1/2.25	0.7	0.15	1.20	11.0	217	3×4	7/0.85	0.7	0.15	1.20	11.7	225
4×4	1/2.25	0.7	0.15	1.20	12.0	269	4×4	7/0.85	0.7	0.15	1.50	13.3	297
5×4	1/2.25	0.7	0.15	1.50	13.6	340	5×4	7/0.85	0.7	0.20	1.50	14.6	369
6×4	1/2.25	0.7	0.20	1.50	14.9	411	6×4	7/0.85	0.7	0.20	1.50	15.8	427
7×4	1/2.25	0.7	0.20	1.50	14.9	453	7×4	7/0.85	0.7	0.20	1.50	15.8	469
8x4	1/2.25	0.7	0.20	1.50	16.5	516	8x4	7/0.85	0.7	0.20	1.50	17.5	534
10x4	1/2.25	0.7	0.20	1.50	18.5	626	10x4	7/0.85	0.7	0.20	1.70	20.1	666
12x4	1/2.25	0.7	0.20	1.70	19.5	736	12x4	7/0.85	0.7	0.20	1.70	20.8	760
14x4	1/2.25	0.7	0.20	1.70	20.4	832	14x4	7/0.85	0.7	0.20	1.70	21.7	859

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×6	1/2.76	0.7	0.15	1.20	11.5	219	2×6	7/1.04	0.7	0.15	1.20	12.2	226
3×6	1/2.76	0.7	0.15	1.20	12.1	287	3×6	7/1.04	0.7	0.15	1.50	13.5	313
4×6	1/2.76	0.7	0.20	1.50	14.0	395	4×6	7/1.04	0.7	0.20	1.50	14.9	406
5×6	1/2.76	0.7	0.20	1.50	15.2	471	5×6	7/1.04	0.7	0.20	1.50	16.1	483
6×6	1/2.76	0.7	0.20	1.50	16.4	549	6×6	7/1.04	0.7	0.20	1.50	17.5	562
7×6	1/2.76	0.7	0.20	1.50	16.4	610	7×6	7/1.04	0.7	0.20	1.50	17.5	624
8x6	1/2.76	0.7	0.20	1.50	18.3	696	8x6	7/1.04	0.7	0.20	1.70	19.9	730
10x6	1/2.76	0.7	0.20	1.70	21.0	868	10x6	7/1.04	0.7	0.20	1.70	22.4	887
12x6	1/2.76	0.7	0.20	1.70	21.7	1000	12x6	7/1.04	0.7	0.20	1.70	23.1	1020
14x6	1/2.76	0.7	0.20	1.70	22.7	1137	14x6	7/1.04	0.7	0.25	1.70	24.5	1189

Nominal Size	Conductor Structure	Insulation Thickness	Diameter of braided copper wire	Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
2×10	7/1.35	0.7	0.20	1.50	14.8	359
3×10	7/1.35	0.7	0.20	1.50	15.7	471
4×10	7/1.35	0.7	0.20	1.50	17.1	589
5×10	7/1.35	0.7	0.20	1.50	18.6	709
10×10	7/1.35	0.7	0.20	1.70	20.7	849
7×10	7/1.35	0.7	0.20	1.70	20.7	949
8x10	7/1.35	0.7	0.20	1.70	23.1	1083
10x10	7/1.35	0.7	0.25	1.70	26.3	1357

Expand More

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Copper Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
2×0.75	1/0.97	0.6	0.10	1.20	7.3	66
3×0.75	1/0.97	0.6	0.10	1.20	7.7	79
4×0.75	1/0.97	0.6	0.10	1.20	8.2	93
5×0.75	1/0.97	0.6	0.10	1.20	8.8	107
6×0.75	1/0.97	0.6	0.10	1.20	9.5	122
7×0.75	1/0.97	0.6	0.10	1.20	9.5	132
8x0.75	1/0.97	0.6	0.10	1.20	10.5	149
10x0.75	1/0.97	0.6	0.10	1.20	11.7	178
12x0.75	1/0.97	0.6	0.10	1.20	12.0	200
14x0.75	1/0.97	0.6	0.10	1.50	13.1	242
16x0.75	1/0.97	0.6	0.10	1.50	13.8	267
19x0.75	1/0.97	0.6	0.10	1.50	14.4	302
24x0.75	1/0.97	0.6	0.10	1.50	16.6	370
27x0.75	1/0.97	0.6	0.10	1.50	16.9	402
30x0.75	1/0.97	0.6	0.10	1.50	17.5	436
37x0.75	1/0.97	0.6	0.10	1.70	19.2	532
44x0.75	1/0.97	0.6	0.10	1.70	21.3	622
48x0.75	1/0.97	0.6	0.10	1.70	21.7	663
52x0.75	1/0.97	0.6	0.10	1.70	22.2	707
61x0.75	1/0.97	0.6	0.10	1.70	23.5	806

Nominal Size	Conductor Structure	Insulation Thickness	Thickness of Copper Tape	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km
2×0.75	7/0.37	0.6	0.10	1.20	7.6	69
3×0.75	7/0.37	0.6	0.10	1.20	8.0	82
4×0.75	7/0.37	0.6	0.10	1.20	8.6	97
5×0.75	7/0.37	0.6	0.10	1.20	9.2	112
6×0.75	7/0.37	0.6	0.10	1.20	9.9	128
7×0.75	7/0.37	0.6	0.10	1.20	9.9	138
8x0.75	7/0.37	0.6	0.10	1.20	10.9	157
10x0.75	7/0.37	0.6	0.10	1.50	12.8	205
12x0.75	7/0.37	0.6	0.10	1.50	13.2	228
14x0.75	7/0.37	0.6	0.10	1.50	13.8	253
16x0.75	7/0.37	0.6	0.10	1.50	14.4	279
19x0.75	7/0.37	0.6	0.10	1.50	15.1	316
24x0.75	7/0.37	0.6	0.10	1.50	17.4	388
27x0.75	7/0.37	0.6	0.10	1.50	17.8	420
30x0.75	7/0.37	0.6	0.10	1.50	18.4	456
37x0.75	7/0.37	0.6	0.10	1.70	20.1	557
44x0.75	7/0.37	0.6	0.10	1.70	22.5	650
48x0.75	7/0.37	0.6	0.10	1.70	22.8	693
52x0.75	7/0.37	0.6	0.10	1.70	23.4	739
61x0.75	7/0.37	0.6	0.10	1.70	24.8	842

Expand More

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×0.75	24/0.20	0.6	1.20	7.4	56	2×1	32/0.20	0.6	1.20	7.7	64
3×0.75	24/0.20	0.6	1.20	7.7	68	3×1	32/0.20	0.6	1.20	8.1	79
4×0.75	24/0.20	0.6	1.20	8.3	82	4×1	32/0.20	0.6	1.20	8.8	95
5×0.75	24/0.20	0.6	1.20	9.0	96	5×1	32/0.20	0.6	1.20	9.5	112
6×0.75	24/0.20	0.6	1.20	9.7	110	6×1	32/0.20	0.6	1.20	10.3	129
7×0.75	24/0.20	0.6	1.20	9.7	120	7×1	32/0.20	0.6	1.20	10.3	141
8x0.75	24/0.20	0.6	1.20	10.7	136	8x1	32/0.20	0.6	1.20	11.4	160
10x0.75	24/0.20	0.6	1.20	12.0	163	10x1	32/0.20	0.6	1.50	13.4	212
12x0.75	24/0.20	0.6	1.50	13.0	203	12x1	32/0.20	0.6	1.50	13.8	240
14x0.75	24/0.20	0.6	1.50	13.6	227	14x1	32/0.20	0.6	1.50	14.4	270
16x0.75	24/0.20	0.6	1.50	14.3	252	16x1	32/0.20	0.6	1.50	15.1	300
19x0.75	24/0.20	0.6	1.50	15.0	287	19x1	32/0.20	0.6	1.50	15.9	343
24x0.75	24/0.20	0.6	1.50	17.3	353	24x1	32/0.20	0.6	1.50	18.4	424
27x0.75	24/0.20	0.6	1.50	17.6	386	27x1	32/0.20	0.6	1.50	18.8	464
30x0.75	24/0.20	0.6	1.50	18.2	520	30x1	32/0.20	0.6	1.70	19.9	525
37x0.75	24/0.20	0.6	1.70	20.0	518	37x1	32/0.20	0.6	1.70	21.3	625
44x0.75	24/0.20	0.6	1.70	22.3	606	44x1	32/0.20	0.6	1.70	23.9	733
48x0.75	24/0.20	0.6	1.70	22.7	649	48x1	32/0.20	0.6	1.70	24.2	787
52x0.75	24/0.20	0.6	1.70	23.3	693	52x1	32/0.20	0.6	1.70	24.9	842
61x0.75	24/0.20	0.6	1.70	24.7	794	61x1	32/0.20	0.6	1.70	26.4	967

Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	kg/km
2×1.5	30/0.25	0.6	1.20	8.2	76	2×2.5	50/0.25	0.7	1.20	9.5	104
3×1.5	30/0.25	0.6	1.20	8.7	96	3×2.5	50/0.25	0.7	1.20	10.1	135
4×1.5	30/0.25	0.6	1.20	9.4	117	4×2.5	50/0.25	0.7	1.20	11.0	167
5×1.5	30/0.25	0.6	1.20	10.2	139	5×2.5	50/0.25	0.7	1.20	11.9	200
6×1.5	30/0.25	0.6	1.20	11.0	161	6×2.5	50/0.25	0.7	1.50	13.6	253
7×1.5	30/0.25	0.6	1.20	11.0	178	7×2.5	50/0.25	0.7	1.50	13.6	280
8x1.5	30/0.25	0.6	1.20	12.3	203	8x2.5	50/0.25	0.7	1.50	15.1	319
10x1.5	30/0.25	0.6	1.50	14.4	266	10x2.5	50/0.25	0.7	1.50	17.0	387
12x1.5	30/0.25	0.6	1.50	14.8	304	12x2.5	50/0.25	0.7	1.50	17.5	446
14x1.5	30/0.25	0.6	1.50	15.5	343	14x2.5	50/0.25	0.7	1.50	18.4	507
16x1.5	30/0.25	0.6	1.50	16.3	383	16x2.5	50/0.25	0.7	1.70	19.8	587
19x1.5	30/0.25	0.6	1.50	17.2	441	19x2.5	50/0.25	0.7	1.70	20.8	678
24x1.5	30/0.25	0.6	1.70	20.3	566	24x2.5	50/0.25	0.7	1.70	24.2	843
27x1.5	30/0.25	0.6	1.70	20.7	621	27x2.5	50/0.25	0.7	1.70	24.7	929
30x1.5	30/0.25	0.6	1.70	21.5	678	30x2.5	50/0.25	0.7	1.70	25.6	1019
37x1.5	30/0.25	0.6	1.70	23.1	812	37x2.5	50/0.25	0.7	1.70	27.6	1227
44x1.5	30/0.25	0.6	1.70	25.9	955	44x2.5	50/0.25	0.7	2.00	31.7	1491
48x1.5	30/0.25	0.6	1.70	26.3	1027	48x2.5	50/0.25	0.7	2.00	32.2	1605
52x1.5	30/0.25	0.6	1.70	27.0	1101	52x2.5	50/0.25	0.7	2.00	33.1	1723
61x1.5	30/0.25	0.6	2.00	29.2	1310	61x2.5	50/0.25	0.7	2.00	35.1	1989

Expand More

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×0.75	24/0.20	0.6	0.15	1.20	7.8	79	2×1	32/0.2	0.6	0.15	1.20	8.2	88
3×0.75	24/0.20	0.6	0.15	1.20	8.2	92	3×1	32/0.2	0.6	0.15	1.20	8.6	104
4×0.75	24/0.20	0.6	0.15	1.20	8.8	108	4×1	32/0.2	0.6	0.15	1.20	9.2	123
5×0.75	24/0.20	0.6	0.15	1.20	9.4	125	5×1	32/0.2	0.6	0.15	1.20	9.9	143
6×0.75	24/0.20	0.6	0.15	1.20	10.1	142	6×1	32/0.2	0.6	0.15	1.20	10.7	163
7×0.75	24/0.20	0.6	0.15	1.20	10.1	151	7×1	32/0.2	0.6	0.15	1.20	10.7	175
8x0.75	24/0.20	0.6	0.15	1.20	11.2	172	8x1	32/0.2	0.6	0.15	1.20	11.8	199
10x0.75	24/0.20	0.6	0.15	1.50	13.0	223	10x1	32/0.2	0.6	0.20	1.50	14.0	273
12x0.75	24/0.20	0.6	0.15	1.50	13.4	247	12x1	32/0.2	0.6	0.20	1.50	14.4	304
14x0.75	24/0.20	0.6	0.20	1.50	14.2	289	14x1	32/0.2	0.6	0.20	1.50	15.0	337
16x0.75	24/0.20	0.6	0.20	1.50	14.9	318	16x1	32/0.2	0.6	0.20	1.50	15.8	371
19x0.75	24/0.20	0.6	0.20	1.50	15.6	357	19x1	32/0.2	0.6	0.20	1.50	16.5	418
24x0.75	24/0.20	0.6	0.20	1.50	17.9	436	24x1	32/0.2	0.6	0.20	1.70	19.4	531
27x0.75	24/0.20	0.6	0.20	1.50	18.2	470	27x1	32/0.2	0.6	0.20	1.70	19.8	574
30x0.75	24/0.20	0.6	0.20	1.50	18.9	508	30x1	32/0.2	0.6	0.20	1.70	20.5	620
37x0.75	24/0.20	0.6	0.20	1.70	20.6	614	37x1	32/0.2	0.6	0.20	1.70	22.0	728
44x0.75	24/0.20	0.6	0.20	1.70	23.0	715	44x1	32/0.2	0.6	0.25	1.70	24.7	881
48x0.75	24/0.20	0.6	0.20	1.70	23.3	759	48x1	32/0.2	0.6	0.25	1.70	25.1	937
52x0.75	24/0.20	0.6	0.20	1.70	23.9	807	52x1	32/0.2	0.6	0.25	1.70	25.7	996
61x0.75	24/0.20	0.6	0.25	1.70	25.5	947	61x1	32/0.2	0.6	0.25	1.70	27.2	1131

Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight	Nominal Size	Conductor Structure	Insulation Thickness	Dia. of Braided Copper Wire	Sheath Thickness	Approx. Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	mm	kg/km	mm2	No./mm	mm	mm	mm	mm	kg/km
2×1.5	30/0.25	0.6	0.15	1.20	8.7	102	2×2.5	50/0.25	0.7	0.15	1.20	10.0	135
3×1.5	30/0.25	0.6	0.15	1.20	9.1	124	3×2.5	50/0.25	0.7	0.15	1.20	10.5	168
4×1.5	30/0.25	0.6	0.15	1.20	9.8	148	4×2.5	50/0.25	0.7	0.15	1.20	11.4	205
5×1.5	30/0.25	0.6	0.15	1.20	10.6	173	5×2.5	50/0.25	0.7	0.15	1.50	13.0	259
6×1.5	30/0.25	0.6	0.15	1.20	11.4	198	6×2.5	50/0.25	0.7	0.20	1.50	14.2	315
7×1.5	30/0.25	0.6	0.15	1.20	11.4	216	7×2.5	50/0.25	0.7	0.20	1.50	14.2	342
8x1.5	30/0.25	0.6	0.15	1.50	13.3	264	8x2.5	50/0.25	0.7	0.20	1.50	15.7	389
10x1.5	30/0.25	0.6	0.20	1.50	15.0	333	10x2.5	50/0.25	0.7	0.20	1.50	17.6	468
12x1.5	30/0.25	0.6	0.20	1.50	15.4	373	12x2.5	50/0.25	0.7	0.20	1.50	18.1	530
14x1.5	30/0.25	0.6	0.20	1.50	16.1	416	14x2.5	50/0.25	0.7	0.20	1.70	19.4	614
16x1.5	30/0.25	0.6	0.20	1.50	16.9	461	16x2.5	50/0.25	0.7	0.20	1.70	20.4	682
19x1.5	30/0.25	0.6	0.20	1.50	17.8	523	19x2.5	50/0.25	0.7	0.20	1.70	21.4	778
24x1.5	30/0.25	0.6	0.20	1.70	20.9	664	24x2.5	50/0.25	0.7	0.25	1.70	25.0	993
27x1.5	30/0.25	0.6	0.20	1.70	21.4	721	27x2.5	50/0.25	0.7	0.25	1.70	25.6	1083
30x1.5	30/0.25	0.6	0.20	1.70	22.1	782	30x2.5	50/0.25	0.7	0.25	1.70	26.4	1178
37x1.5	30/0.25	0.6	0.20	1.70	23.7	925	37x2.5	50/0.25	0.7	0.20	1.70	28.3	1364
44x1.5	30/0.25	0.6	0.25	1.70	26.7	1116	44x2.5	50/0.25	0.7	0.25	2.00	32.5	1689
48x1.5	30/0.25	0.6	0.25	1.70	27.1	1191	48x2.5	50/0.25	0.7	0.25	2.00	33.0	1807
52x1.5	30/0.25	0.6	0.25	1.70	27.8	1270	52x2.5	50/0.25	0.7	0.25	2.00	33.9	1931
61x1.5	30/0.25	0.6	0.25	2.00	30.1	1491	61x2.5	50/0.25	0.7	0.30	2.00	36.1	2256

Expand More

XLPE INSULATED CONTROL CABLE
