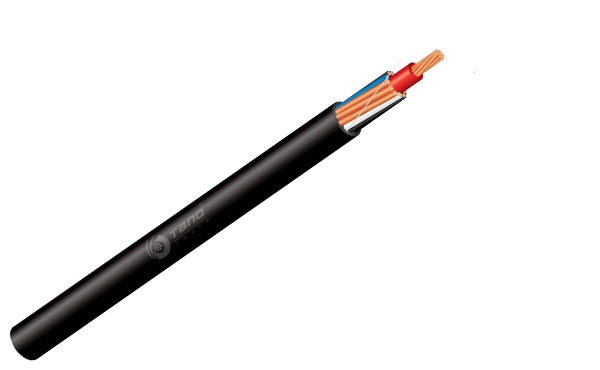

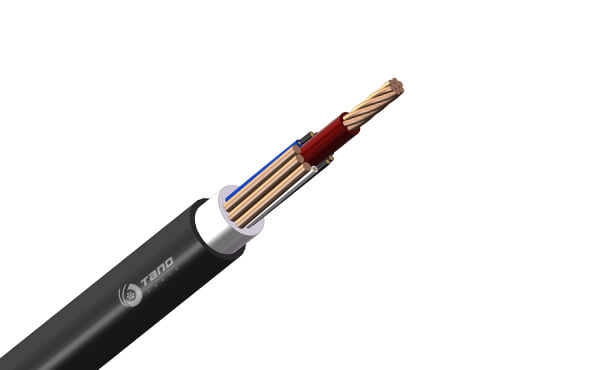

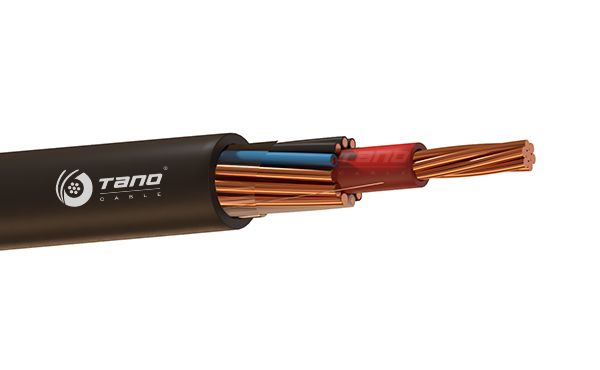

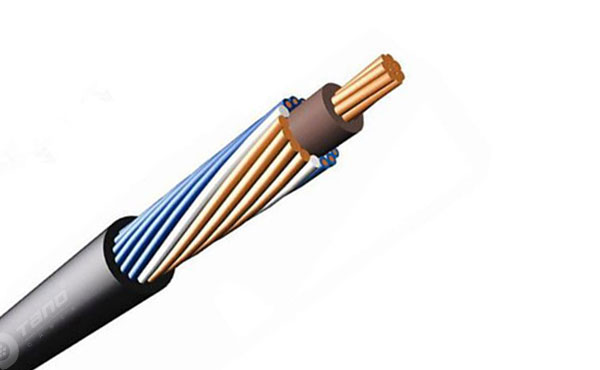

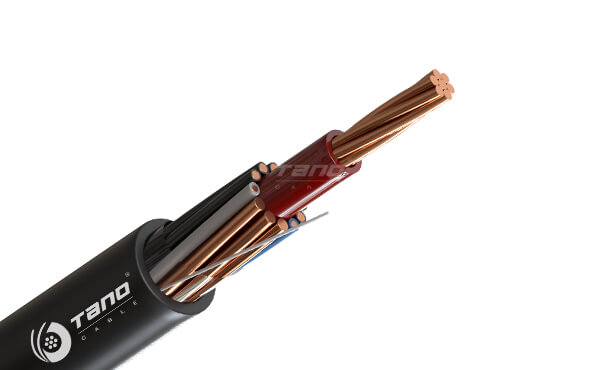

Concentric Cable | SNE Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

For use in electricity supply to houses, 600V. Strung in air from pole top distribution box to houses pre-paid electricity meter / main circuit breaker.

DOWNLOAD
CABLE DATASHEET

0.6/1kV

SANS 1507-6

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

SANS 1507-6

APPLICATION

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY WOODEN OR STEEL-WOODEN REEL/DRUM

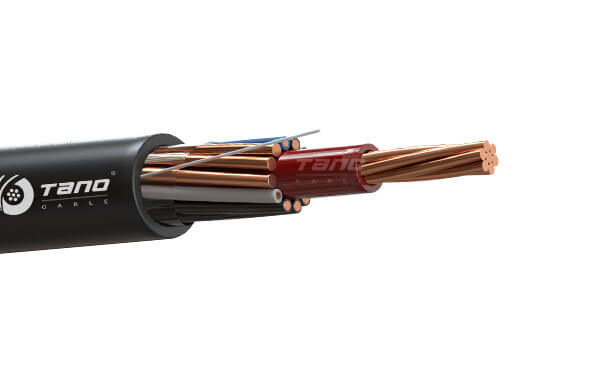

CONSTRUCTION

Centre phase core, hard drawn Cu stranded, red XLPE insulated UV stable, split concentric layer 7x black PE insulated neutral wires + 3 bare Cu earth wires, + communication cores white & blue, UV stable PE outer sheath.

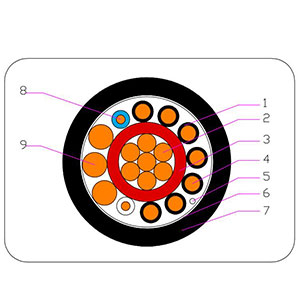

1. Insulation:

PE (Polyethylene)

2. Phase Conductor:

Stranded Copper Conductor

3. Insulation:

XLPE

4. Neutral Conductor:

Solid Copper Wire

5. Ripcord:

Nylon

6. Binder Tape:

Polyester Tape

7. Outer Sheath:

PE (Polyethylene)

8. Pilot Core:

PE Insulated Copper Wire

9. Earth Conductor:

Solid Copper Wire

PARAMETER

SNE Cable

Size	Phase Conductor		XLPE Insulation		Earth Conductor	Neutral Conductor	Pilot Core	PE Sheath		Approx. Weight
Size	Structure	O.D	Thickness	O.D	Structure	Structure	Structure	Thickness	O.D	Approx. Weight
mm2	No./mm	mm	mm	mm	No./mm	No./mm	No./mm	mm	mm	kg/km
4	7/0.92	2.76	1.0	4.76	3/1.05	7/0.86	2/1.13	1.4	10.0	168
10	7/1.35	4.05	1.0	6.05	3/1.78	7/1.33	2/1.13	1.6	12.7	334
16	7/1.70	5.10	1.0	7.10	3/2.20	7/1.76	2/1.13	1.6	14.5	502

Expand More
