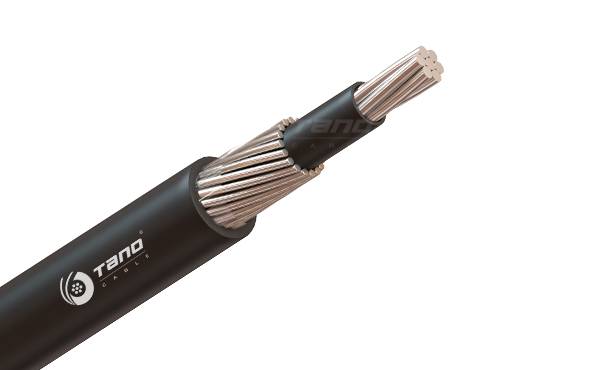

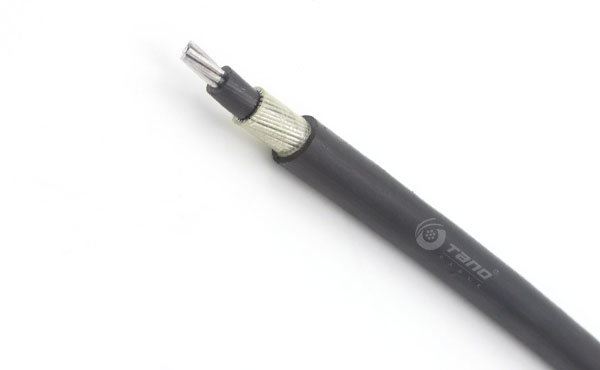

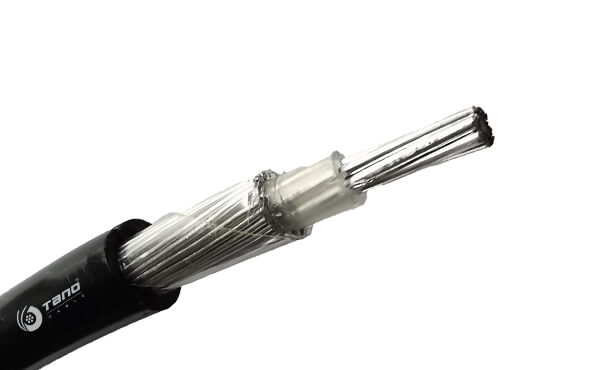

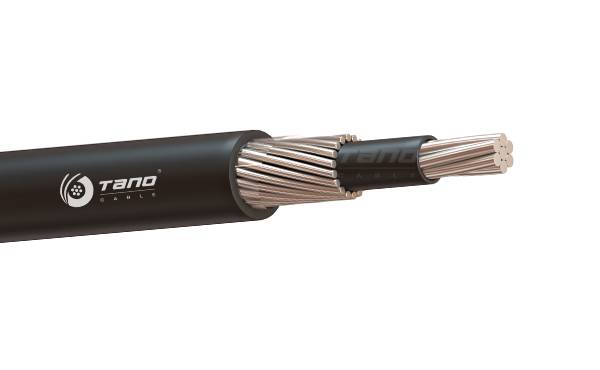

Concentric Cable for Peru market

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 90ºC and its voltage of service for all the applications is 600V.

DOWNLOAD
CABLE DATASHEET

0.6/1kV

IEC 60502-1, ASTM B 800, ASTM B 801, ICEA S-95-658, UL 2556

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

IEC 60502-1, ASTM B 800, ASTM B 801, ICEA S-95-658, UL 2556

APPLICATION

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY WOODEN OR STEEL-WOODEN REEL/DRUM

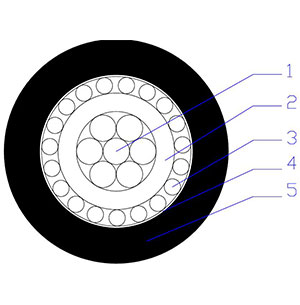

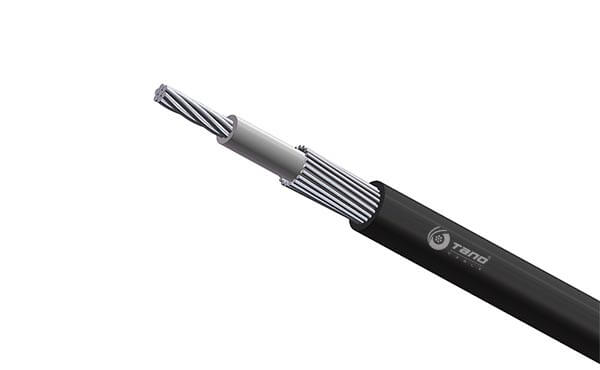

CONSTRUCTION

1. Phase conductor:

Hard drawn aluminum wire

2. Insulation:

XLPE

3. Neutral conductor:

Aluminum alloy conductor 8000 series

4. Binder tape:

Polyester tape

5. Outer sheath:

PVC

PARAMETER

Peru Market

No.	Item	Unit	Technical Data
1	Voltage	kV	0.6/1
2	Size	mm2	2x6
3	Phase Conductor
	Material	Hard drawn aluminum wire
	No.&Diameter of Wires	No./mm	7/1.05
	Diameter of Conductor (approx.)	mm	3.15
	Max. DC Resistance at 20°C	Ω/km	4.61
4	Insulation
	Material	XLPE( Natural color)
	Nominal Thickness	mm	0.7
	Diameter of Insulation(approx.)	mm	4.55
5	Neutral Conductor
	Material	Aluminum alloy 8000 series
	No.&Diameter of Wires	No./mm	19/0.65
	Outer Diameter(approx.)	mm	5.85
6	Binder Tape
	Material	Polyester tape
	Nominal Thickness	mm	0.05
	Outer Diameter(approx.)	mm	6.0
7	Outer Sheath
	Material	PVC ST2(Black color)
	Nominal Thickness	mm	1.4
8	Overall Diameter(approx.)	mm	8.8
9	Weight(approx.)	kg/km	94
