Concentric Cable for Africa market

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery), and as feeder cable from the meters panel until the panel or general distribution panel, just as it is specified in the National Electrical Code. This type of conductor can be used in dry and wet places, directly buried or outdoors; its maximum temperature of operation is 75ºC and its voltage of service for all the applications is 600V.

DOWNLOAD
CABLE DATASHEET

0.6/1kV

SANS 1507, NRS 063, IEC 60502, IEC 60228

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

SANS 1507, NRS 063, IEC 60502, IEC 60228

APPLICATION

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY WOODEN OR STEEL-WOODEN REEL/DRUM

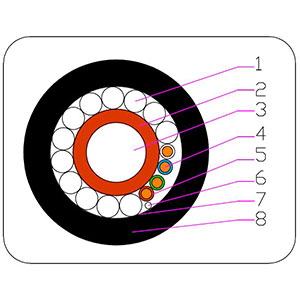

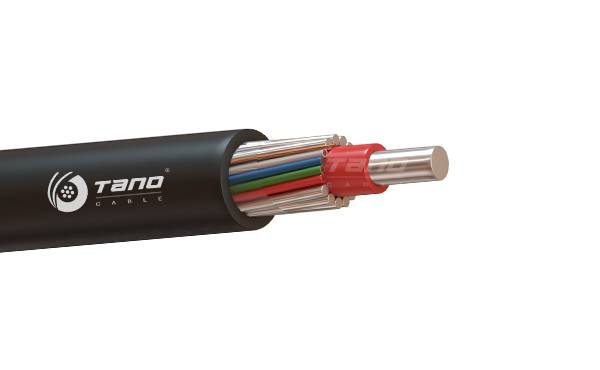

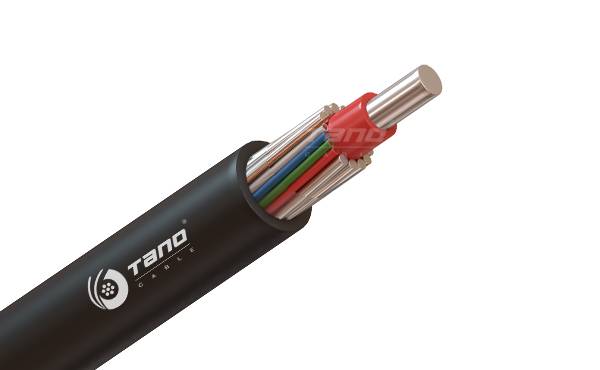

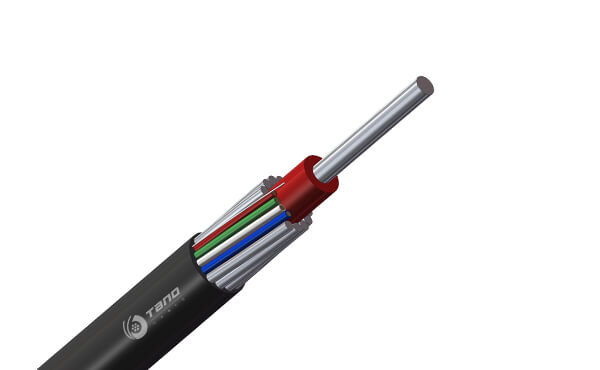

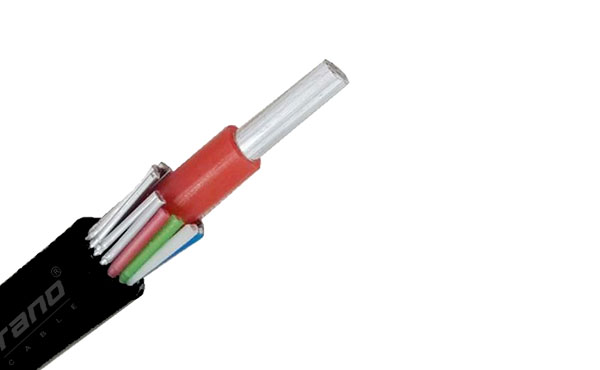

CONSTRUCTION

1. Earth Conductor:

Solid Aluminum Wire

2. Insulation:

XLPE

3. Phase Conductor:

Solid Aluminum Wire

4. Communication Core:

Solid Copper Wire

5. Insulation:

LLDPE

6. Ripcord:

Nylon

7. Binder Tape:

Polyester Tape

8. Outer Sheath:

LLDPE

PARAMETER

Africa Market

Item	Description	Unit	Techincal Data
1	Standard		SANS 1507, NRS 063 IEC 60502/228
2	Voltage	V	600/1000
3	Cross Section Area	mm2	16
4	Phase Conductor
4.1	Material		Hard drawn solid aluminum wire
4.2	Stranding and Wire Diameter	No./mm	1/4.5
4.3	Conductor's Diameter(approx.)	mm	4.5
5	Insulation(Phase Core)
5.1	Material		XLPE (Red)
5.2	Nominal Thickness	mm	1.0
5.3	Outer Diameter(approx.)	mm	6.5
6	Earth Conductor
6.1	Material		Solid aluminum wire
6.2	Stranding and Wire Diameter	No./mm	12/1.7
7	Communication Wire
7.1	No. of Core& Cross Section Area	No.x mm2	4x0.5
7.2	Material		Solid copper wire
7.3	Stranding and Wire Diameter	No./mm	1/0.8
8	Insulation(Communication Wire)
8.1	Material		LLDPE (Red, Green, White, Blue)
8.2	Outer Diameter(approx.)	mm	1.13
9	Ripcord		Nylon
10	Binder Tape		Polyester tape
11	Outer Sheath
11.1	Material		UV resistant LLDPE(Black)
11.2	Nominal Thickness	mm	1.6
12	Overall Diameter(approx.)	mm	13.2
13	Max. Conductor DC Resistance at 20°C
13.1	Phase Conductor	Ω/km	1.91
13.2	Earth Conductor	Ω/km	1.068
13.3	Earth Wire	Ω/km	12.7
13.4	Communication Wire	Ω/km	36.0
