Concentric Cable | CNE Cable

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

For use in electricity supply to houses, 600V. Strung in air from pole top distribution box to houses pre-paid electricity meter / main circuit breaker.

DOWNLOAD
CABLE DATASHEET

0.6/1kV

SANS 1507-6

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

0.6/1kV

STANDARD

SANS 1507-6

APPLICATION

ELECTRIC ENTRANCE SERVICE
POWER DISTRIBUTION NETWORKS

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & UV & Oil resistance:Good

MECHANICAL PERFORMANCE

Minimum bending radius:x10 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
BURIED

CABLE MARKING

OIL INK PRINTING
LASER PRINTING
EMBOSSING PRINTING

PACKAGING

BY ROLL
BY WOODEN OR STEEL-WOODEN REEL/DRUM

CONSTRUCTION

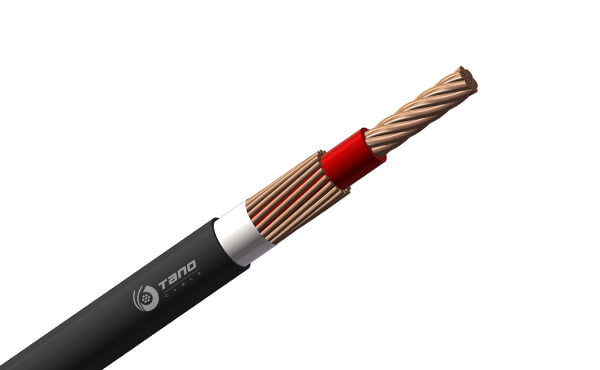

Centre phase core, Galv.steel + tinned Cu stranded, red XLPE insulated UV stable phase core, concentric layer bare tinned Cu + GSW, UV stable PE or XLPE outer sheath black or orange.

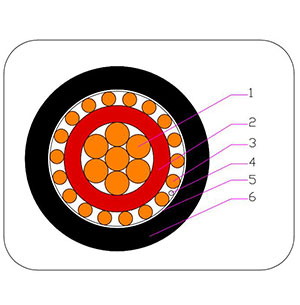

1. Phase Conductor:

Stranded Copper Conductor

2. Insulation:

XLPE

3. Earth Conductor:

Solid Copper Wire

4. Ripcord:

Nylon

5. Binder Tape:

Polyester Tape

6. Outer Sheath:

PE (Polyethylene)

PARAMETER

CNE Cable

Size	Phase Conductor		XLPE Insulation		Earth Conductor		PE Sheath		Approx. Weight
Size	Structure	O.D	Thickness	O.D	Structure	O.D	Thickness	O.D	Approx. Weight
mm2	No./mm	mm	mm	mm	No./mm	mm	mm	mm	kg/km
4	7/0.92	2.76	1.0	4.76	8/0.85	6.46	1.4	9.41	131
10	7/1.35	4.05	1.0	6.05	18/0.85	7.75	1.4	10.70	240

Expand More

CNE CABLE
