TW WIRE | THW WIRE - TANO CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

Type TW and THW may be used for general purpose wiring for power and lighting, for installation in air, conduit, duct or other recognized raceways, in wet or dry locations.
Maximum voltage rating 600 V.

STANDARD

UL 83, UL 1581

DOWNLOAD
CABLE DATASHEET

600V

UL 83, UL 1581

HOME USE
INDUSTRIAL USE
COMMERCIAL USE

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

600V

STANDARD

UL 83, UL 1581

APPLICATION

HOME USE
INDUSTRIAL USE
COMMERCIAL USE

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & Oil resistant: Good

MECHANICAL PERFORMANCE

Minimum bending radius:x4 cable diameter

FIRE PERFORMANCE

Flame retardant based on UL VW1

THERMINAL PERFORMANCE

Maximum service temperature:90℃
Maximum short-circuit temperature:250℃(max. 5s)

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

OPEN AIR
IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

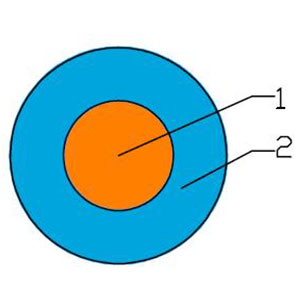

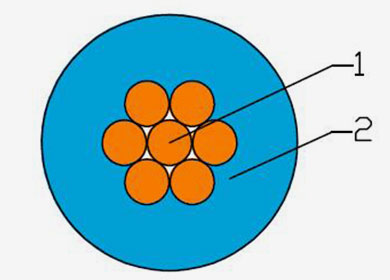

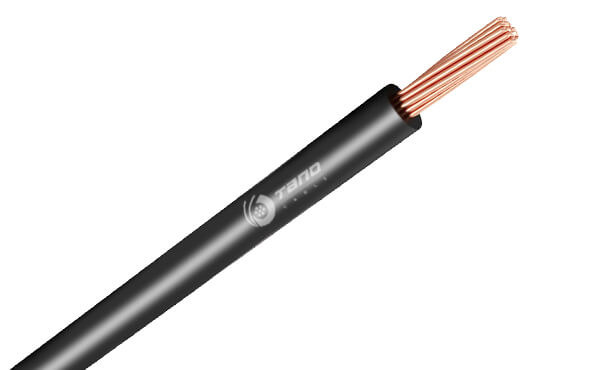

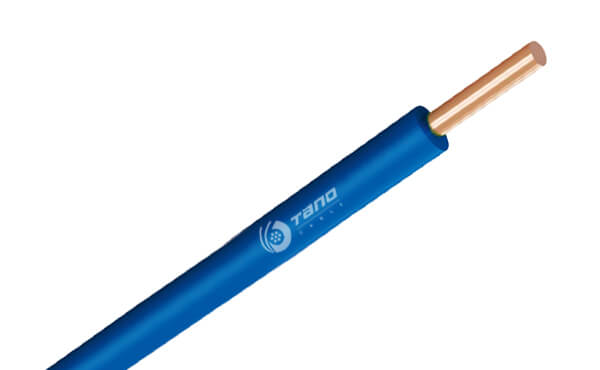

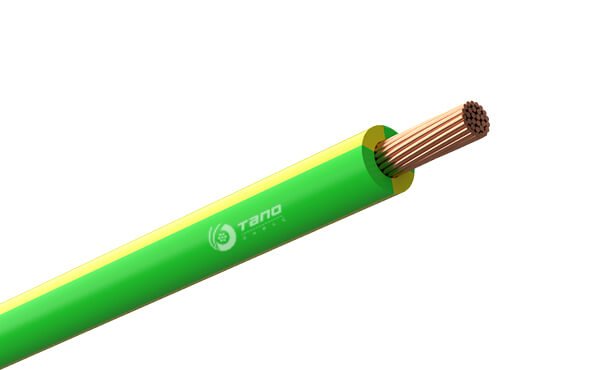

CONSTRUCTION

1. Conductor:

Solid or stranded bare copper conductor

2. Insulation:

PVC

Color of insulation:

Red, blue, black, brown, yellow, green, green/yellow or other colors

MAXIMUM CONDUCTOR TEMPERATURE

TYPE	OIL	WET	DRY
TW	60°C	60°C	60°C
THW	75°C	75°C	75°C

PARAMETER

TW AND THW

Size	Construction		Conductor Dia.	Insulation Thickness	Approx. Overall Dia.	Approx.Weight
	No. of Wires	Dia. of Wires				Approx.Weight
	No. of Wires	Dia. of Wires				TW	THW
AWG/Kcmil	No.	mm	mm	mm	mm	kg/km	kg/km
14	1	1.63	1.63	0.77	3.17	26.8	26.8
12	1	2.06	2.06	0.77	3.60	38.7	38.7
10	1	2.59	2.59	0.77	4.13	58.1	58.1
8	1	3.27	3.27	1.15	5.57	96.8	96.8
14	7	0.62	1.86	0.77	3.40	28.3	28.3
12	7	0.78	2.34	0.77	3.88	41.7	41.7
10	7	0.98	2.94	0.77	4.48	62.5	62.5
8	7	1.24	3.72	1.15	6.02	102.7	102.7
6	7	1.56	4.68	1.53	7.74	165.2	166.7
4	7	1.96	5.88	1.53	8.94	247.1	248.6
2	7	2.48	7.44	1.53	10.50	375.1	376.6
1/0	19	1.89	9.20	2.04	13.28	589.4	592.3
2/0	19	2.13	10.34	2.04	14.42	732.2	735.2
3/0	19	2.39	11.61	2.04	15.69	904.9	909.3
4/0	19	2.68	13.01	2.04	17.09	1120.7	1123.6
250	37	2.09	14.20	2.42	19.04	1334.9	1339.4
300	37	2.29	15.55	2.42	20.39	1583.5	1587.9
350	37	2.47	16.79	2.42	21.63	1824.6	1830.5
400	37	2.64	17.96	2.42	22.80	2068.6	2074.6
500	37	2.95	20.05	2.42	24.89	2553.8	2559.7
600	61	2.52	22.00	2.80	27.60	3016.4	3021.0
750	61	2.82	24.64	2.80	30.24	3817.3	3824.7
1000	61	3.25	28.40	2.80	34.00	5007.8	5018.2

Expand More

TW/THW
