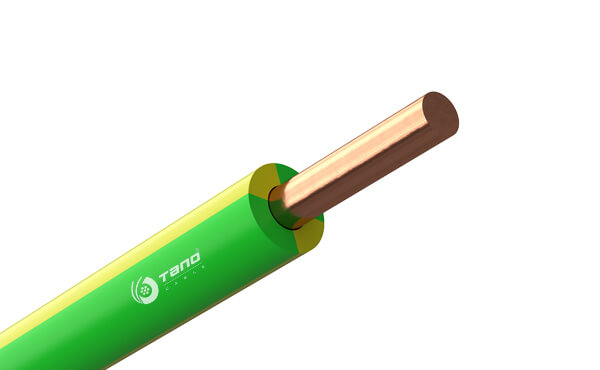

H07V-U wire - TANO CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

Installation in surface mounted or embedded conduits, or similar closed systems. Suitable for fixed protected installation in, or on, lighting or controlgear for voltages up to 1000V a.c. or, up to 750V d.c. to earth.

STANDARD

BS EN 50525-2-31

DOWNLOAD
CABLE DATASHEET

450/750V

BS EN 50525-2-31

ELECTRICAL PANEL WIRING
HOME USE
INDUSTRIAL USE
COMMERCIAL USE

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

450/750V

STANDARD

BS EN 50525-2-31

APPLICATION

ELECTRICAL PANEL WIRING
HOME USE
INDUSTRIAL USE
COMMERCIAL USE

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Acceptable

MECHANICAL PERFORMANCE

Minimum bending radius:x5 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:70℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

INSTALLATION CONDITIONS

IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

CONSTRUCTION

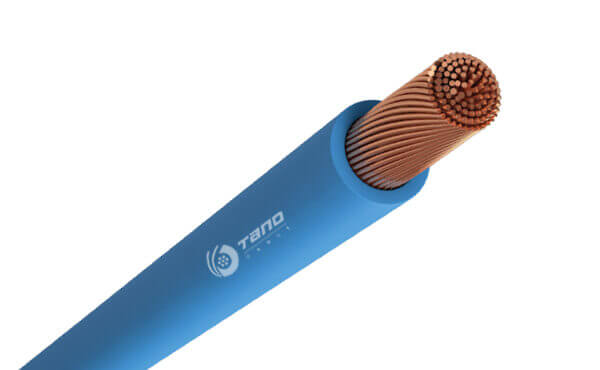

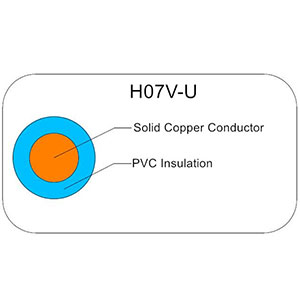

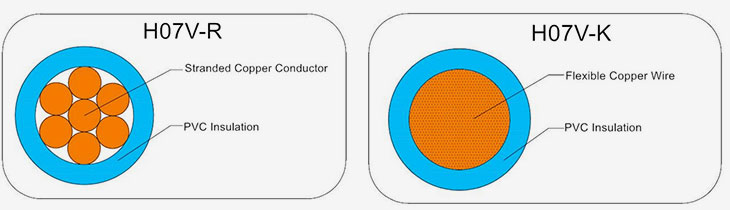

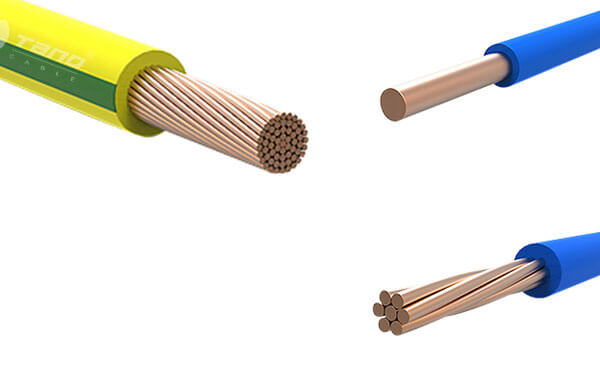

1. Conductor:

Annealed copper conductor acc. to EN 60228:

class 1 solid -H07V-U

class 2 stranded H07V-R

class 5 flexible H07V-K

2. Insulation:

PVC compound type TI 1

3. Color of insulation:

Blue, black, brown, green/yellow or other colors

CHARACTERISTIC

Maximum conductor operating temperature: +70°C

Lowest ambient temperature for fixed installation: -30°C

Lowest installation temperature: -5°C

Maximum short-circuit conductor temperature: +160°C

Nominal voltage:Uo/U: 450/ 750 V

Test voltage: 2500V

Flame retardant: IEC 60332-1-2

Minimum bending radius:

Minimum bending radius:	For cable diameter D (mm)
	D≤8	8<D≤12	12<D≤20	D>20
Normal use	4 D	5 D	6 D	6 D
Careful bending at termination	2 D	3 D	4 D	4 D

PARAMETER

H07V-U

H07V-R

H07V-K

Nominal Cross Section Area	No. of Wires /Dia. of Wires	Approx. Dia. of Conductor	Thickness of Insulation	Approx. Overall Dia.	Approx. Weight of Cable	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C



mm2	No./mm	mm	mm	mm	kg/km	Ω/km	MΩ.km
H07V-U
1.5	1/1.38	1.38	0.7	2.9	20.9	12.1	0.011
2.5	1/1.78	1.78	0.8	3.5	32.8	7.41	0.010
4	1/2.25	2.25	0.8	4.0	47.9	4.61	0.0087
6	1/2.76	2.76	0.8	4.5	67.8	3.08	0.0074
10	1/3.57	3.57	1.0	5.7	112.0	1.83	0.0072

Expand More

Nominal Cross Section Area	No. of Wires /Dia. of Wires	Approx. Dia. of Conductor	Thickness of Insulation	Approx. Overall Dia.	Approx. Weight of Cable	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C



mm2	No./mm	mm	mm	mm	kg/km	Ω/km	MΩ.km
H07V-R
1.5	7/0.52	1.56	0.7	2.96	21.5	12.1	0.010
2.5	7/0.68	2.04	0.8	3.64	34.6	7.41	0.0099
4	7/0.85	2.55	0.8	4.15	49.5	4.61	0.0082
6	7/1.04	3.12	0.8	4.72	69.5	3.08	0.0070
10	7/1.35	4.05	1.0	6.05	116.3	1.83	0.0067
16	7/1.70	5.1	1.0	7.1	167.1	1.15	0.0056
25	7/2.14	6.42	1.2	8.82	268.8	0.727	0.0053
35	7/2.52	7.56	1.2	9.96	364.6	0.524	0.0046
50	19/1.78	8.90	1.4	11.7	517.7	0.387	0.0046
70	19/2.14	10.70	1.4	13.5	708.2	0.268	0.0040
95	19/2.52	12.60	1.6	15.8	959.7	0.193	0.0039
120	37/2.03	14.21	1.6	17.41	1194.8	0.153	0.0035
150	37/2.25	15.75	1.8	19.35	1493.4	0.124	0.0035
185	37/2.52	17.64	2.0	21.64	1843.5	0.0991	0.0035
240	61/2.25	20.25	2.2	24.65	2383.5	0.0754	0.0034
300	61/2.52	22.68	2.4	27.48	2971.5	0.0601	0.0033
400	61/2.85	25.65	2.6	30.85	3927.4	0.0470	0.0031

Expand More

Nominal Cross Section Area	No. of Wires /Dia. of Wires	Approx. Dia. of Conductor	Thickness of Insulation	Approx. Overall Dia.	Approx. Weight of Cable	Max. Conductor Resistance at 20°C	Min. Insulation Resistance at 70°C



mm2	No./mm	mm	mm	mm	kg/km	Ω/km	MΩ.km
H07V-K
1.5	30/0.25	1.57	0.7	2.97	21.2	13.3	0.010
2.5	49/0.25	2.02	0.8	3.62	33.4	7.98	0.0095
4	56/0.30	2.9	0.8	4.5	50.3	4.95	0.0078
6	84/0.30	3.6	0.8	5.2	71.1	3.30	0.0068
10	84/0.40	4.7	1.0	6.7	117.7	1.91	0.0065
16	126/0.40	5.9	1.0	7.9	177.7	1.21	0.0053
25	196/0.40	7.3	1.2	9.7	275.0	0.780	0.0050
35	276/0.40	9.2	1.2	11.6	376.1	0.554	0.0043
50	396/0.40	11	1.4	13.8	535.0	0.386	0.0042
70	360/0.50	13.1	1.4	15.9	730.0	0.272	0.0036
95	475/0.50	14.4	1.6	17.6	981.3	0.206	0.0036
120	608/0.50	16.3	1.6	19.5	1221.8	0.161	0.0032
150	756/0.50	18.7	1.8	22.3	1532.5	0.129	0.0032
185	925/0.50	20.1	2.0	24.1	1883.8	0.106	0.0032
240	1221/0.50	23.1	2.2	27.5	2435.9	0.0801	0.0031

Expand More

H07V-U & H07V-R & H07V-K
