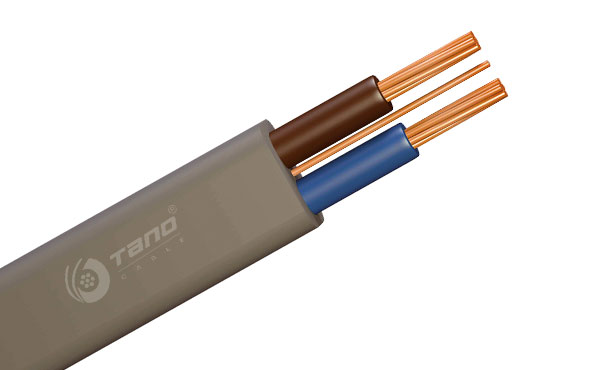

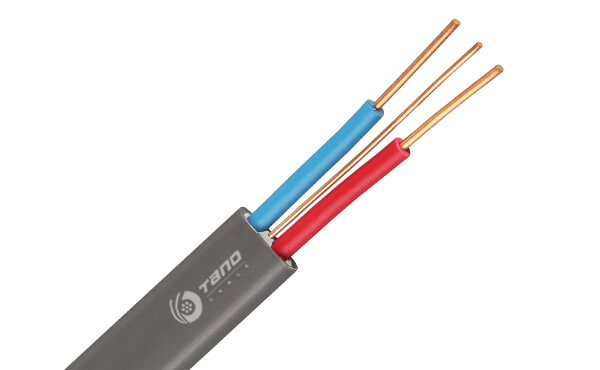

6242Y FLAT TWIN & EARTH CABLE

Overview Specifications

CONSTRUCTION PARAMETER

Overview

APPLICATION

Fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster

STANDARD

BS 6004

DOWNLOAD
CABLE DATASHEET

450/750V

BS 6004

HOME USE
INDUSTRIAL USE
COMMERCIAL USE

BY COLOR

Specifications

ELECTRICAL PERFORMANCE

450/750V

STANDARD

BS 6004

APPLICATION

HOME USE
INDUSTRIAL USE
COMMERCIAL USE

CORE IDENTIFICATION

BY COLOR

CHEMICAL PERFORMANCE

Chemical & Oil resistance:Acceptable

MECHANICAL PERFORMANCE

Minimum bending radius:x5 cable diameter

FIRE PERFORMANCE

Flame non-propagation base on IEC 60332-1

THERMINAL PERFORMANCE

Maximum service temperature:70℃
Maximum short-circuit temperature:160℃(max. 5s)
Minimum service temperature:-40℃

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

IN CONDUIT

CABLE MARKING

OIL INK PRINTING
EMBOSSING PRINTING

PACKAGING

BY COIL/BY ROLL
BY PLASTIC, POLYWOOD, WOODEN REEL/DRUM

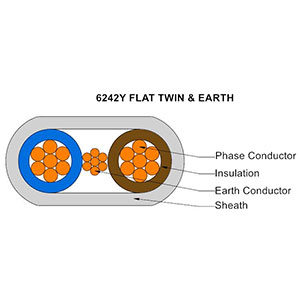

CONSTRUCTION

1. Phase Conductor:

Class 1 plain copper, solid, or class 2 plain copper, stranded

2. Insulation:

PVC type TI 1

3. Earth Conductor:

Class 1 plain copper, solid, or class 2 plain copper, stranded

4. Outer Sheath:

PVC type 6

Colors for core identification: Brown and Blue
Colour of sheath: Grey

Operating temperature: Maximum 70°C, Minimum bending 0 °C.

Minimum bending radius:

Diameter up to 10mm: 3 x overall diameter.

Diameter 10mm to 25mm: 4 x overall diameter

Nominal Voltage:Uo/U: 300/ 500 V

PARAMETER

6242Y FLAT TWIN & EARTH

Nominal Cross Section	Phase Conductor		Insulation		Earth Conductor			Outer Sheath		Approx. Weight
Nominal Cross Section	No. of Wires/ Dia.of Wire	Conductor Dia.	Nominal Thickness	Insulation Dia.	No. of Wires	Dia. of Wire	Conductor Dia.	Nominal Thickness	Overall Dia.	Approx. Weight
mm2	No./mm	mm	mm	mm	No.	mm	mm	mm	mm	kg/km
2x1.0+1.0	1/1.13	1.13	0.6	2.33	1	1.13	1.13	0.9	7.59x4.13	63.9
2x1.5+1.0	1/1.38	1.38	0.7	2.78	1	1.13	1.13	0.9	8.49x4.58	80.3
2x2.5+1.5	1/1.78	1.78	0.8	3.38	1	1.38	1.38	1.0	10.14x5.38	118.5
2x4+1.5	7/0.85	2.55	0.8	4.15	1	1.38	1.38	1.0	11.68x6.15	157.8
2x6+2.5	7/1.04	3.12	0.8	4.72	1	1.78	1.78	1.1	13.42x6.92	218.6
2x10+4	7/1.35	4.05	1.0	6.05	7	0.85	2.55	1.2	17.05x8.45	346.7
2x16+6	7/1.70	5.10	1.0	7.10	7	1.04	3.12	1.3	19.92x9.70	501.5
