All Aluminum Conductor AAC

Overview Specifications

CONSTRUCTION PARAMETER

Overview

DESCRIPTION

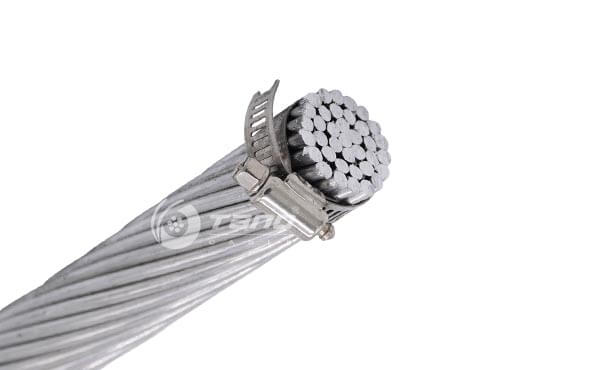

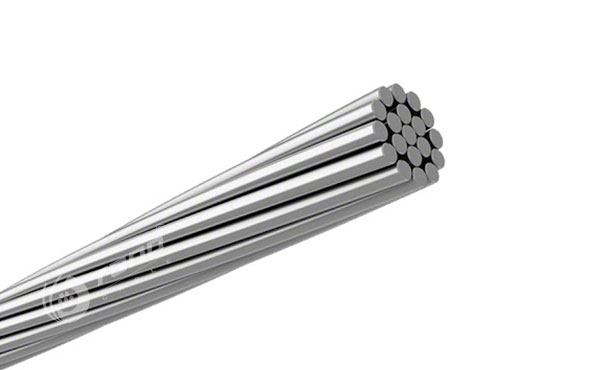

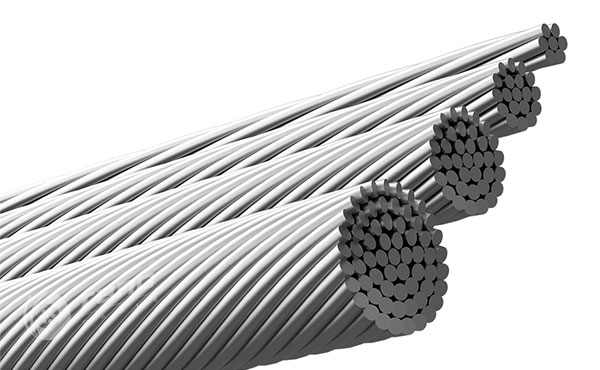

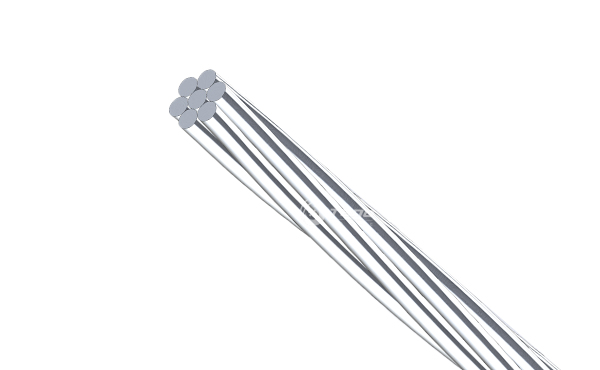

Hard drawn Aluminum wires, stranded in successive layers, in opposite direction to form the Aluminum stranded AAC conductor.

APPLICATION

All Aluminium Conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.

STANDARD

IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179.

DOWNLOAD
CABLE DATASHEET

N/A

IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179.

DISTRIBUTION LINE
SUBSTATION

N/A

Specifications

ELECTRICAL PERFORMANCE

N/A

STANDARD

IEC 61089, DIN 48201-5, AS 1531, BS 215-1, BS EN 50182, ASTM B 231/B 231/M, GB/T 1179.

APPLICATION

DISTRIBUTION LINE
SUBSTATION

CORE IDENTIFICATION

N/A

CHEMICAL PERFORMANCE

N/A

MECHANICAL PERFORMANCE

Refer to relative standards

FIRE PERFORMANCE

N/A

THERMINAL PERFORMANCE

N/A

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

Open air

CABLE MARKING

N/A

PACKAGING

BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

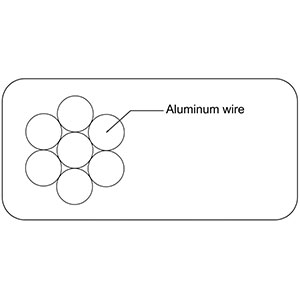

CONSTRUCTION

1. Conductor:

Hard drawn aluminum wire

Generally, the AAC Conductor is formed by the following construction:

PARAMETER

IEC 61089

DIN 48201-5

AS 1531

BS 215-1

BS EN 50182

ASTM B 231/B 231M

GB/T 1179

Code Name	Nominal Area	No. & Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Code Name	mm2	No./mm	mm	kg/km	kN	Ω/km
10	10.0	7/1.35	4.05	27.4	2.0	2.8633
16	16.0	7/1.71	5.13	43.8	3.0	1.7896
25	25.0	7/2.13	6.39	68.4	4.5	1.1453
40	40.0	7/2.70	8.10	109.4	6.8	0.7158
63	63.0	7/3.39	10.17	172.3	10.4	0.4545
100	100.0	19/2.59	12.95	274.8	17.0	0.2877
125	125.0	19/2.89	14.45	343.6	21.3	0.2302
160	160.0	19/3.27	16.35	439.8	26.4	0.1798
200	200.0	19/3.66	18.30	549.7	32.0	0.1439
250	250.0	19/4.09	20.45	687.1	40.0	0.1151
315	315.0	37/3.29	23.03	867.9	52.0	0.0916
400	400.0	37/3.71	25.97	1102.0	64.0	0.0721
450	450.0	37/3.94	27.58	1239.8	72.0	0.0641
500	500.0	37/4.15	29.05	1377.6	80.0	0.0577
560	560.0	37/4.39	30.73	1542.9	89.6	0.0515
630	630.0	61/3.63	32.67	1738.3	100.8	0.0458
710	710.0	61/3.85	34.65	1959.1	113.6	0.0407
800	800.0	61/4.09	36.81	2207.4	128.0	0.0361
900	900.0	61/4.33	38.97	2483.3	144.0	0.0321
1000	1000.0	61/4.57	41.13	2759.2	160.0	0.0289
1120	1120.0	91/3.96	43.56	3093.5	179.2	0.0258
1250	1250.0	91/4.18	45.98	3452.6	200.0	0.0231
1400	1400.0	91/4.43	48.73	3866.9	224.0	0.0207
1500	1500.0	91/4.58	50.38	4143.1	240.0	0.0193

Expand More

Area		No. & Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Nominal	Actual	No. & Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
mm2	mm2	No./mm	mm	kg/km	kN	Ω/km
16	15.9	7/1.70	5.10	43.0	2.8	1.8022
25	24.3	7/2.10	6.30	66.0	4.2	1.1810
35	34.4	7/2.50	7.50	94.0	5.8	0.8333
50	49.5	7/3.00	9.00	135.0	7.9	0.5787
50	48.4	19/1.80	9.00	133.0	8.5	0.5951
70	65.8	19/2.10	10.50	181.0	11.3	0.4372
95	93.3	19/2.50	12.50	256.0	15.7	0.3085
120	117.0	19/2.80	14.00	322.0	18.8	0.2459
150	147.1	37/2.25	15.80	406.0	25.3	0.1960
185	181.6	37/2.50	17.50	500.0	30.5	0.1588
240	242.5	61/2.25	20.30	670.0	39.5	0.1191
300	299.4	61/2.50	22.50	827.0	47.7	0.0965
400	400.1	61/2.89	26.00	1104.0	60.9	0.0722
500	499.8	61/3.23	29.10	1379.0	74.7	0.0578
625	626.2	91/2.96	32.60	1732.0	95.3	0.0462
800	802.1	91/3.35	36.90	2218.0	118.4	0.0360
1000	999.7	91/3.74	41.10	2767.0	145.8	0.0289

Expand More

Code Name	Nominal Area	No. & Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Code Name	mm2	No./mm	mm	kg/km	kN	Ω/km
Leo	34.4	7/2.50	7.50	94.3	5.7	0.8330
Leonids	41.6	7/2.75	8.25	113.0	6.7	0.6890
Libra	49.5	7/3.00	9.00	135.0	8.0	0.5790
Mars	77.3	7/3.75	11.30	211.0	11.8	0.3700
Mercury	111.0	7/4.50	13.50	304.0	16.9	0.2580
Moon	124.0	7/4.75	14.30	339.0	18.9	0.2320
Neptune	158.0	19/3.25	16.30	433.0	24.7	0.1830
Orion	183.0	19/3.50	17.50	503.0	28.7	0.1570
Pluto	210.0	19/3.75	18.80	576.0	31.9	0.1370
Saturn	262.0	37/3.00	21.00	721.0	42.2	0.1100
Sirius	307.0	37/3.25	22.80	845.0	48.2	0.0940
Taurus	337.0	19/4.75	23.80	924.0	51.3	0.0857
Triton	409.0	37/3.75	26.30	1120.0	62.2	0.0706
Uranus	506.0	61/3.25	29.30	1400.0	75.2	0.0572
Ursula	587.0	61/3.50	31.50	1620.0	87.3	0.0493
Venus	673.0	61/3.75	33.80	1860.0	97.2	0.0429

Expand More

Code Name	Nominal Area	No.& Dia. of Wire	Approx. Overall Dia.	Total Area	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Code Name	mm2	No./mm	mm	mm2	kg/km	kN	Ω/km
Midge	22.0	7/2.06	6.18	23.3	64.0	4.0	1.2270
Ant	50.0	7/3.10	9.30	52.8	145.0	8.3	0.5419
Fly	60.0	7/3.40	10.20	63.6	174.0	9.9	0.4505
Wasp	100.0	7/4.39	13.17	106.0	290.0	16.0	0.2702
Hornet	150.0	19/3.25	16.25	157.6	434.0	25.7	0.1825
Chafer	200.0	19/3.78	18.90	213.2	587.0	32.4	0.1349
Cockroach	250.0	19/4.22	21.10	265.7	731.0	40.4	0.1083
Butterfly	300.0	19/4.65	23.25	322.7	888.0	48.8	0.0892
Centipede	400.0	37/3.78	26.46	415.2	1145.0	63.1	0.0694

Expand More

Code Name	No.& Dia. of Wire	Approx. Overall Dia.	Total Area	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Code Name	No./mm	mm	mm2	kg/km	kN	Ω/km
Gnat	7/2.21	6.63	26.9	73.0	4.8	1.0643
Mosquito	7/2.59	7.77	36.9	101.0	6.3	0.7749
Ladybird	7/2.79	8.37	42.8	117.0	7.3	0.6678
Bluebottle	7/3.66	10.98	73.6	201.0	11.8	0.3880
Earwig	7/3.78	11.34	78.6	215.0	12.6	0.3638
Grasshopper	7/3.91	11.73	84.1	230.0	13.5	0.3400
Clegg	7/4.17	12.51	95.6	261.0	15.3	0.2989
Beetle	19/2.67	13.35	106.4	292.0	18.1	0.2701
Bee	7/4.90	14.70	132	361.0	21.1	0.2165
Caterpillar	19/3.53	17.65	185.9	511.0	29.8	0.1546
Spider	19/3.99	19.95	237.6	653.0	38.0	0.1210
Moth	19/5.00	25.00	373.1	1025.0	59.7	0.0770
Drone	37/3.58	25.06	372.4	1027.0	59.6	0.0774
Maybug	37/4.09	28.63	486.1	1341.0	77.8	0.0593
Scorpion	37/4.27	29.89	529.8	1461.0	84.8	0.0544
Cicada	37/4.65	32.55	628.3	1733.0	100.5	0.0459

Expand More

Code Name	Nominal Area		No./ Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
Code Name	AWG or MCM	mm2	No./mm	mm	kg/km	kN	Ω/km
Peachbell	6	13.3	7/1.56	4.68	36.6	2.5	2.1477
Rose	4	21.1	7/1.96	5.88	58.2	3.9	1.3606
Iris	2	33.6	7/2.47	7.41	92.6	6.0	0.8567
Pansy	1	42.4	7/2.78	8.34	116.6	7.3	0.6763
Poppy	1/0.0	53.5	7/3.12	9.36	147.2	8.8	0.5369
Aster	2/0.0	67.4	7/3.50	10.50	185.7	11.1	0.4267
Phlox	3/0.0	85.0	7/3.93	11.79	233.9	13.5	0.3384
Oxlip	4/0.0	107.2	7/4.42	13.26	295.2	17.0	0.2675
Valerian	250.0	126.7	19/2.91	14.55	348.6	20.7	0.2274
Sneezewort	250.0	126.7	7/4.80	14.40	348.8	20.1	0.2269
Laurel	266.8	135.2	19/3.01	15.05	372.2	22.1	0.2125
Daisy	266.8	135.2	7/4.96	14.88	372.3	21.4	0.2125
Peony	300.0	152.0	19/3.19	15.95	418.3	24.3	0.1892
Tulip	336.4	170.5	19/3.38	16.90	469.5	27.3	0.1686
Daffodil	350.0	177.3	19/3.45	17.25	487.9	28.4	0.1618
Canna	397.5	201.4	19/3.67	18.35	554.9	31.6	0.1430
Goldentuft	450.0	228.0	19/3.91	19.55	627.6	35.0	0.1260
Syringa	477.0	241.7	37/2.88	20.16	664.8	38.6	0.1192
Cosmos	477.0	241.7	19/4.02	20.10	664.8	37.0	0.1192
Hyacinth	500.0	253.3	37/2.95	20.65	696.8	40.5	0.1136
Zinnia	500.0	253.3	19/4.12	20.60	697.1	38.9	0.1134
Dahlia	556.5	282.0	19/4.35	21.75	775.8	43.3	0.1018
Mistletoe	556.5	282.0	37/3.12	21.84	775.7	44.3	0.1016
Meadowsweet	600.0	304.0	37/3.23	22.61	836.3	47.5	0.0948
Orchid	636.0	322.3	37/3.33	23.31	886.9	50.4	0.0892
Heuchera	650.0	329.4	37/3.37	23.59	907.4	51.7	0.0871
Flag	700.0	354.7	61/2.72	24.48	975.8	57.1	0.0811
Varbena	700.0	354.7	37/3.49	24.43	975.7	55.4	0.0812
Nasturtium	715.5	362.6	61/2.75	24.75	998.5	58.4	0.0793
Violet	715.5	362.6	37/3.53	24.71	998.5	56.7	0.0794
Cattail	750.0	380.0	61/2.82	25.38	1046.0	60.3	0.0754
Petunia	750.0	380.0	37/3.62	25.34	1046.0	58.6	0.0755
Lilac	795.0	402.8	61/2.90	26.10	1110.0	63.8	0.0713
Arbutus	795.0	402.8	37/3.72	26.04	1109.0	61.8	0.0715
Snapdragon	900.0	456.0	61/3.09	27.81	1256.0	70.8	0.0628
Cockscomb	900.0	456.0	37/3.96	27.72	1256.0	68.4	0.0631
Goldenrod	954.0	483.4	61/3.18	28.62	1331.0	75.0	0.0593
Magnolia	954.0	483.4	37/4.08	28.56	1331.0	72.6	0.0594
Camellia	1000.0	506.7	61/3.25	29.25	1394.0	78.3	0.0568
Hawkweed	1000.0	506.7	37/4.18	29.26	1395.0	76.2	0.0566
Larkspur	1033.5	523.7	61/3.31	29.79	1442.0	81.3	0.0547
Bluebell	1033.5	523.7	37/4.25	29.75	1441.0	78.8	0.0547
Marigold	1113.0	564.0	61/3.43	30.87	1553.0	87.3	0.0510
Hawthorn	1192.5	604.2	61/3.55	31.95	1662.0	93.5	0.0476
Narsissus	1272.0	644.5	61/3.67	33.03	1774.0	98.1	0.0445
Columbine	1351.0	694.8	61/3.78	34.02	1884.0	104.0	0.0420
Carnation	1431.0	725.1	61/3.89	35.01	1997.0	108.0	0.0396
Gladiolus	1510.5	765.4	61/4.00	36.00	2108.0	114.0	0.0375
Coreopsis	1590.0	805.7	61/4.10	36.90	2216.0	120.0	0.0357
Jassamine	1750.0	886.7	61/4.30	38.70	2442.0	132.0	0.0324
Cowslip	2000.0	1013.0	91/3.77	41.47	2787.0	153.0	0.0286
Sagebrush	2250.0	1140.0	91/3.99	43.89	3166.0	167.0	0.0255
Lupine	2500.0	1267.0	91/4.21	46.31	3519.0	186.0	0.0229
Bitterrot	2750.0	1393.0	91/4.42	48.62	3872.0	205.0	0.0208
Trillium	3000.0	1520.0	127/3.90	50.70	4226.0	223.0	0.0193
Bluebonnet	3500.0	1773.0	127/4.22	54.86	4977.0	261.0	0.0165

Expand More

Nominal Area	Total Area	No./Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Nominal Breaking Load	Max. DC Resistance at 20°C
mm2	mm2	No./mm	mm	kg/km	kN	Ω/km
35	34.4	7/2.50	7.50	94.0	6.0	0.8333
50	49.5	7/3.00	9.00	135.3	8.4	0.5787
70	71.3	7/3.60	10.80	194.9	11.4	0.4019
95	95.1	7/4.16	12.50	260.2	15.2	0.3010
120	121.2	19/2.85	14.30	333.2	20.6	0.2374
150	148.1	19/3.15	15.80	407.0	24.4	0.1943
185	182.8	19/3.50	17.50	502.4	30.2	0.1574
210	209.9	193.75	18.80	576.8	33.6	0.1371
240	238.8	19/4.00	20.00	656.3	38.2	0.1205
300	297.6	19/3.20	22.40	819.8	49.1	0.0969
500	502.9	19/4.16	29.10	1385.5	80.5	0.0573

Expand More
