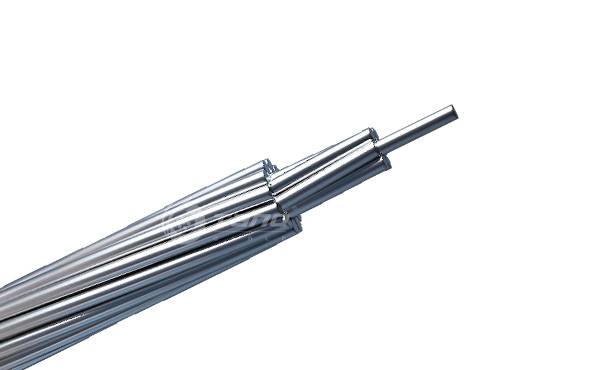

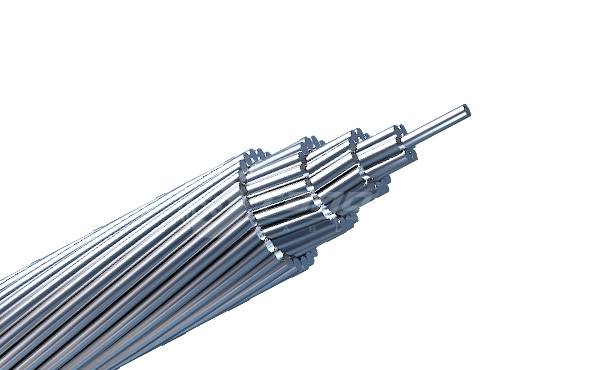

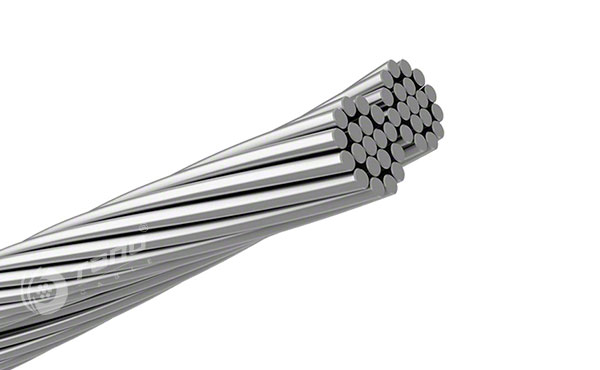

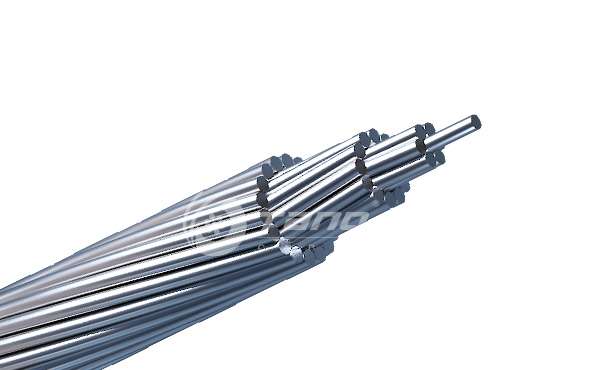

All Aluminum Alloy Conductor AAAC 6201

Overview Specifications

CONSTRUCTION PARAMETER

Overview

DESCRIPTION

All Aluminum alloy(ALMELEC) conductors, stranded in successive layers to form the stranded AAAC conductor.

APPLICATION

AAAC are mainly used to overhead lines, in transmission and distribution electrical networks, having relatively long spans. They are also used a messenger to support overhead electrical cables.

STANDARD

ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 48201-6, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179

DOWNLOAD
CABLE DATASHEET

N/A

ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 48201-6, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179

TRANSMISSION LINE
DISTRIBUTION LINE
AS MESSENGER

N/A

Specifications

ELECTRICAL PERFORMANCE

N/A

STANDARD

ASTM B 399/B 399M, IEC 61089, BS EN 50182, AS 1531, DIN 48201-6, BS EN 50183, BS 3242, NF C 34-125, GB/T 1179

APPLICATION

TRANSMISSION LINE
DISTRIBUTION LINE
AS MESSENGER

CORE IDENTIFICATION

N/A

CHEMICAL PERFORMANCE

N/A

MECHANICAL PERFORMANCE

Refer to relative standards

FIRE PERFORMANCE

N/A

THERMINAL PERFORMANCE

N/A

Other Properties

APPROVALS

N/A

INSTALLATION CONDITIONS

Open air

CABLE MARKING

N/A

PACKAGING

BY WOODEN OR STEEL-WOODEN OR FULL STEEL REEL/DRUM

CONSTRUCTION

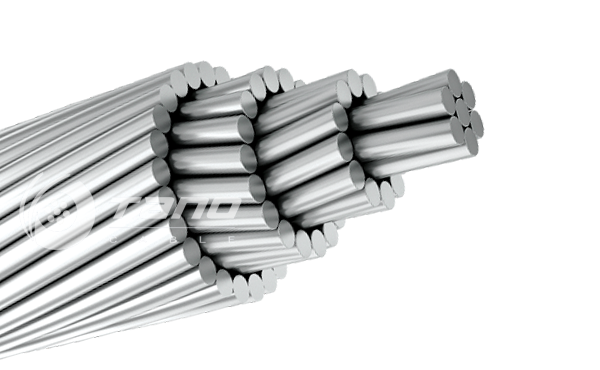

1. Conductor:

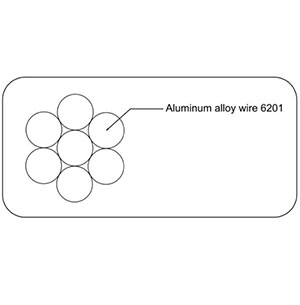

Hard drawn aluminum alloy wire 6201

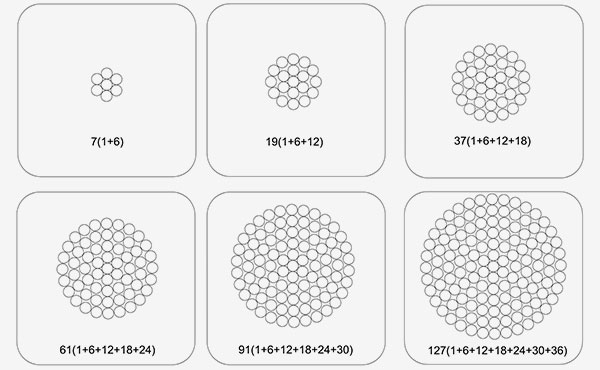

Generally, the AAAC 6201 Conductor is formed by the following construction:

PARAMETER

BS EN 50182

IEC 60189

DIN 48201

ASTM B 399/B 399M

GB/T 1179-2008 TYPE : JLHA1

GB/T 1179-2008 TYPE : JLHA2

AS 1531

EN 50182/NF C 34-125

Code Name	Nominal Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
	Nominal Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
	mm2	No./mm	mm	kg/km	kN	Ω/km
Box	18.8	7/1.85	5.55	51.4	5.6	1.7480
Acacia	23.8	7/2.08	6.24	64.9	7.0	1.3828
Almond	30.1	7/2.34	7.02	82.2	8.9	1.0926
Cedar	35.5	7/2.54	7.62	96.8	10.5	0.9273
Deodar	42.2	7/2.77	8.31	115.2	12.4	0.7797
Fir	47.8	7/2.95	8.85	130.6	14.1	0.6875
Hazel	59.9	7/3.30	9.90	163.4	17.7	0.5494
Pine	71.6	7/3.61	10.83	195.6	21.1	0.4591
Holly	84.1	7/3.91	11.73	229.5	24.8	0.3913
Willow	89.7	7/4.04	12.12	245.0	26.5	0.3665
Oak	118.9	7/4.65	13.95	324.5	35.1	0.2767
Mulberry	150.9	19/3.18	15.90	414.3	44.5	0.2192
Ash	180.7	19/3.48	17.40	496.1	53.3	0.1830
Elm	211.0	19/3.76	18.80	579.2	62.2	0.1568
Poplar	239.4	37/2.87	20.09	659.4	70.6	0.1387
Sycamore	303.2	37/3.23	22.61	835.2	89.4	0.1095
Upas	362.1	37/3.53	24.71	997.5	106.8	0.0917
Yew	479.0	37/4.06	28.42	1319.6	141.3	0.0693
Totara	498.1	37/4.14	28.98	1372.1	146.9	0.0666
Rubus	586.9	61/3.50	31.50	1622.0	173.1	0.0567
Sorbus	659.4	61/3.71	33.39	1822.5	194.5	0.0505
Araucaria	821.1	61/4.14	37.26	2269.4	242.2	0.0406
Redwood	996.2	61/4.56	41.04	2753.2	293.9	0.0334

Expand More

Code Name	Nominal Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
	Nominal Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
	mm2	No./mm	mm	kg/km	kN	Ω/km
16	18.4	7/1.83	5.49	50.4	5.4	1.7896
25	28.8	7/2.29	6.87	78.7	8.5	1.1453
40	46	7/2.89	8.67	125.9	13.6	0.7158
63	72.5	7/3.63	10.89	198.3	21.4	0.4545
100	115	19/2.78	13.90	316.3	34.0	0.2877
125	144	19/3.10	15.50	395.4	42.4	0.2302
160	184	19/3.51	17.55	506.1	54.3	0.1798
200	230	19/3.93	19.65	632.7	67.9	0.1439
250	288	19/4.39	21.95	790.8	84.9	0.1151
315	363	37/3.53	24.71	998.9	107.0	0.0916
400	460	37/3.98	27.86	1268.4	135.8	0.0721
450	518	37/4.22	29.54	1426.9	152.8	0.0641
500	575	37/4.45	31.15	1585.5	169.8	0.0577
560	645	61/3.67	33.03	1778.4	190.1	0.0516
630	725	61/3.89	35.01	2000.7	213.9	0.0458
710	817	61/4.13	37.17	2254.8	241.1	0.0407
800	921	61/4.38	39.42	2540.6	271.6	0.0361
900	1036	91/3.81	41.91	2861.1	305.6	0.0321
1000	1151	91/4.01	44.11	3179.0	339.5	0.0289
1120	1289	91/4.25	46.75	3560.5	380.3	0.0258
1250	1439	91/4.49	49.39	3973.7	424.4	0.0231

Expand More

Nominal Area	Actual Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
Nominal Area	Actual Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
mm2	mm2	No./mm	mm	kg/km	kN	Ω/km
16	15.9	7/1.70	5.1	43	4.4	2.0742
25	24.3	7/2.10	6.3	66	6.8	1.3593
35	34.4	7/2.50	7.5	94	9.6	0.9591
50	49.5	7/3.00	9.0	135	13.8	0.6660
50	48.4	19/1.80	9.0	133	13.5	0.6849
70	65.8	19/2.10	10.5	181	18.4	0.5032
95	93.3	19/2.50	12.5	256	26.1	0.3551
120	117.0	19/2.80	14.0	322	32.7	0.2831
150	147.1	37/2.25	15.8	406	41.1	0.2256
185	181.6	37/2.50	17.5	500	50.7	0.1828
240	242.5	61/2.25	20.3	670	67.7	0.1371
300	299.4	61/2.50	22.5	827	83.6	0.1110
400	400.1	61/2.89	26.0	1104	111.8	0.0831
500	499.8	61/3.23	29.1	1379	139.6	0.0665
625	626.2	91/2.96	32.6	1732	174.9	0.0531
800	802.1	91/3.35	36.9	2218	224.0	0.0415
1000	999.7	91/3.74	41.1	2767	279.2	0.0333

Expand More

Code Name	Total Area		1350 Grade Equivalent	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
	Total Area		1350 Grade Equivalent	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C
	AWG or MCM	mm2	AWG or MCM	No./mm	mm	kg/km	kN	Ω/km
	AWG or MCM	mm2	AWG or MCM	No./mm	mm	kg/km	kN	Ω/km
Akron	30.6	15.5	6	7/1.68	5.04	43	4.9	2.1588
Alton	48.7	24.7	4	7/2.12	6.36	68	7.8	1.3557
Ames	77.5	39.2	2	7/2.67	8.01	108	12.4	0.8547
Azusa	123.3	62.4	1	7/3.37	10.11	171	18.9	0.5365
Anaheim	155.4	78.6	2/0	7/3.78	11.34	216	23.8	0.4264
Amherst	195.7	99.3	3/0	7/4.25	12.75	272	30.0	0.3373
Alliance	246.9	125.1	4/0	7/4.77	14.31	343	37.8	0.2678
Butte	312.8	158.6	266.8	19/3.26	16.30	435	46.5	0.2112
Canton	394.5	199.9	336.4	19/3.66	18.30	548	58.6	0.1676
Cairo	465.4	236.4	397.5	19/3.98	19.90	649	69.3	0.1417
Darien	559.5	283.6	477	19/4.36	21.80	778	83.1	0.1181
Elgin	652.6	331.0	556.5	19/4.71	23.55	908	97.0	0.1012
Flint	740.8	374.5	636	19/3.59	25.13	1028	107.4	0.0894
Greeley	927.2	469.6	795	19/4.02	28.14	1289	134.6	0.0713

Expand More

Nominal Area	Actual Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C


mm2	mm2	No./mm	mm	kg/km	kN	Ω/km
10	10.02	7/1.35	4.05	27.4	3.26	3.3205
16	16.08	7/1.71	5.13	44.0	5.22	2.0695
25	24.94	7/2.13	6.39	68.2	8.11	1.3339
35	34.91	7/2.52	7.56	95.5	11.35	0.9529
50	50.14	7/3.02	9.06	137.2	16.30	0.6635
70	70.07	7/3.57	10.7	191.7	22.07	0.4748
95	95.14	7/4.16	12.5	261.5	29.97	0.3514
150	149.96	19/3.17	15.9	412.2	48.74	0.2229
210	209.85	19/3.75	18.8	576.8	66.10	0.1593
240	239.96	19/4.01	20.1	661.1	75.59	0.1397
300	299.43	37/3.21	22.5	825.0	97.32	0.1119
400	399.98	37/3.71	26.0	1102.0	125.99	0.0838
500	500.48	37/4.15	29.1	1380.9	157.65	0.0671
630	631.30	61/3.63	32.7	1741.8	198.86	0.0532
800	801.43	61/4.09	36.8	2211.3	252.45	0.0419
1000	1000.58	61/4.57	41.1	2760.7	315.18	0.0335

Expand More

Nominal Area	Actual Area	No. / Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C


mm2	mm2	No./mm	mm	kg/km	kN	Ω/km
10	10.02	7/1.35	4.05	27.4	2.96	3.2891
16	16.08	7/1.71	5.13	44.0	4.74	2.0500
25	24.94	7/2.13	6.39	68.2	7.36	1.3213
35	34.91	7/2.52	7.56	95.5	10.30	0.9439
50	50.14	7/3.02	9.06	137.2	14.79	0.6573
70	70.07	7/3.57	10.7	191.7	20.67	0.4703
95	95.14	7/4.16	12.5	261.5	28.07	0.3481
120	120.36	19/2.84	14.2	330.8	35.51	0.2751
150	149.96	19/3.17	15.9	412.2	44.24	0.2208
210	209.85	19/3.75	18.8	576.8	61.91	0.1578
240	239.96	19/4.01	20.1	661.1	70.79	0.1383
300	299.43	37/3.21	22.5	825.0	88.33	0.1109
400	399.98	37/3.71	26.0	1102.0	117.99	0.0830
500	500.48	37/4.15	29.1	1380.9	147.64	0.0664
630	631.30	61/3.63	32.7	1741.8	186.23	0.0527
800	801.43	61/4.09	36.8	2211.3	236.42	0.0415
1000	1000.58	61/4.57	41.1	2760.7	295.17	0.0332

Expand More

Code Name	No./ Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C


	No./mm	mm	kg/km	kN	Ω/km
Diamond	7/2.50	7.50	94	9.6	0.9670
Dolomite	7/2.75	8.25	114	11.6	0.7990
Emerald	7/3.00	9.00	135	13.9	0.6710
Garnet	7/3.75	11.25	212	21.7	0.4300
Jade	7/4.50	13.50	305	31.2	0.2980
Jasper	7/4.75	14.25	340	34.8	0.2680
Opal	19/3.25	16.25	434	44.2	0.2120
Patronite	19/3.50	17.50	503	51.3	0.1830
Pearl	19/3.75	18.75	577	58.8	0.1590
Ruby	37/3.00	21.00	721	73.5	0.1280
Ruthenium	37/3.25	22.75	846	86.1	0.1090
Rutile	19/4.75	23.75	926	94.4	0.0991
Sapphire	37/3.75	26.25	1127	115.0	0.0819
Spinel	61/3.25	29.25	1398	135.0	0.0662
Tantalum	61/3.50	31.50	1621	156.0	0.0572
Topaz	61/3.75	33.75	1861	179.0	0.0498

Expand More

Code Name	No./ Dia. of Wire	Approx. Overall Dia.	Approx. Weight	Calculated Breaking Load	Max. DC Resistance at 20° C


	No./mm	mm	kg/km	kN	Ω/km
22-AL4	7/2.00	6.00	60.0	7.15	1.4989
34-AL4	7/2.50	7.50	93.8	11.17	0.9593
55-AL4	7/3.15	9.45	148.9	17.73	0.6042
76-AL4	19/2.25	11.3	207.4	24.55	0.4388
117-AL4	19/2.80	14.0	321.2	38.02	0.2833
148-AL4	19/3.15	15.8	406.5	48.12	0.2239
182-AL4	37/2.50	17.5	500.3	59.03	0.1831
228-AL4	37/2.80	19.6	627.6	74.04	0.1460
288-AL4	37/3.15	22.1	794.3	93.71	0.1154
366-AL4	37/3.55	24.9	1008.9	115.36	0.0908
570-AL4	61/3.45	31.1	1576.0	185.33	0.0585
851-AL4	91/3.45	38.0	2360.7	276.47	0.0394
1144-AL4	91/4.00	44.0	3173.4	360.22	0.0293
1596-AL4	127/4.00	52.0	4427.5	502.72	0.0210

Expand More

ALL ALUMINUM ALLOY CONDUCTOR (AAAC CONDUCTOR 6201)
