Selection cable conductor fit applications - Tano cable
Share:
In a wire and cable, the conductor is responsible for doing the main job, moving electricity, energy, or signals from one point to another. The conductor is located at the center of the cable and is what all the other layers of the cable work around to protect. Metals are generally conductive, but some metals are better suited for this task than others. Silver, copper, aluminum, nickel, and tin are some of the most common metals used in conductors, and each has its own advantages and disadvantages.
Aluminum is one popular conductor. It's lightweight and affordable and can be used in a wide range of projuects. However, aluminum is less conductive than copper. Another popular option. Copper is a good conductor and moves electricity quickly. It's both inexpensive and versatile. In addition to being used bare, copper can also be dipped. Coating the copper with another metal can enhance specific qualities necessary for different applications. Sliver is the nost conductive material, but its high price limits its use to very select application. Silver-plated wire is a much more common option. It's less expensive than using silver alone, and it still provides many of the excellent conductive qualities of silver. It not onlyimproves the wire's conductivity, but it also allows the wire to operate over a wide temperature range:-65 degrees celsius to 200 degrees celsius.
Nickel-plated wire also operates in extreme conditions and over a wide temperature range. If the nickel-plating is thick, it can withstand temperatures up to 750 degree celsius. Nickel also adds a layer of excellent corrosion resistance. High strength alloys are other materials commonly used as conductors. These are typically silver-plated or nickel-plated as well. As you can see, conductors are available in a variety of materials, but it isn't just what they're made of that makes them different, it's also how they're configured.

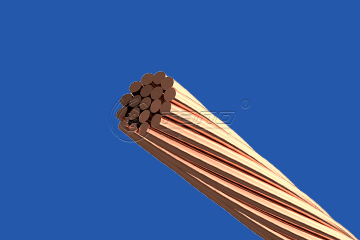

Conductors can be either solid or stranded. Solid conductors are made of one piece of metal, while stranded conductors are made of several threads of metal. Solid conductors are inexpensive and mechanically toupg,but not very flexible. Higher strand counts mean more flexible conductors. Stranded conductors are generally a little more expensive than solid, but the flexibility they provide can make a gig difference in many applications.
For stranded conductors, there are several variations on how those strands can be laid. While bunched is most common, some specialty cables have other options such as concentric, unilay, and rope lay. Bunched strands are simply gathered together without any specific arrangement. They are the least expensive option, because they involve the least labor. Concentric, unilay, and rope lay all have the strands arranged in a circular pattern. But in concentric stranding, the layers alternate in terms of their twist direction. In unilay stranding, every layer is twisted in the same direction. We've learned that there are several options regarding the conductor to consider when specifying electrical wire. Each material and configuration has its own advantages and disadvantages. Make sure to evaluate the requirements of your specific application when choosing the appropriate conductor for your project needs.
.jpg)
HENAN TANO CABLE CO.,LTD is a leading and professional manufacturer of cable and wire, with 26 years history and manufacturing experience. Here, we’ve given our customers the best in customer serive, product selection. We’ve made a name in the list of top suppliers in China. Brand TANO CABLE, carries a wide variety of high quality cable products for numerous industries including automotive,military,OEMS and more. We are ISO 9001:2015 certified,so you can rest assured that the products you receive will be of the highest quality available. We also offer a variety of value-added services including striping, twisting, braiding, cut and strip, customized package and labels. When you need first-class products, our experienced sales representatives and engineers can help you from start to finish that fits your application perfectly. For more information about the products, contact TANO CABLE today. Visit our website at www.tanocable.com
