Cable Guide: Aerial bundled cable
Share:
Content
1How to Select aerial bundled cable?
2what is aerial bundled cable
3Aerial bundled cable phase identification
4Construction of aerial bundled cable
5Aerial bundled cable price list
6Type of aerial bundled cable
7Advantages and application fields of Aerial bundled cable
8Summary
1How to select Aerial bundled cable?
First, to buy Aerial bundled cable, you must recognize the regular brand, meet the relevant standards, and choose products with quality certification (such as CCC certification) and factory certificate of conformity. Must go to the regular store or supplier agent to buy wire and cable products.
Second, the wire material is divided into copper and aluminum, aluminum wire is easy to oxidation and corrosion. The joint part is easy to catch fire, the incidence of fire is dozens of times the copper wire, so the state named the use of copper conductors in new homes. High-quality copper wire, it’s a copper core selection of high purity of positive red-purple copper, bright surface, slightly soft, poor quality core easy to oxidation, the surface dark.
In addition third, the quality of insulation, poor quality wire using insulation materials are recycled plastic, dark color, loose texture, uneven thickness, poor insulation capacity, ignition with a lighter is easy to aging or breakdown voltage. Qualified insulation material is bright, uniform thickness, ignition does not catch fire, etc.
2what is Aerial bundled cable
ABC Cable, also known as Aerial Bundled Cable, is a type of electrical cable used to distribute power at a voltage level of up to 1000V. This cable consists of numerous insulated conductors, bundled and wrapped together tightly. The main function of Aerial bundled cable is to transfer electrical power from the substation to the end-user. The use of insulation is the main difference between ABC cables and bare conventional transmission cables. it is an essential component in the power distribution process, ensuring that electricity is delivered safely and efficiently to its intended recipients.
Aerial bundled cable can be used to replace bare conductor cables in overhead distribution lines. It is ideal for use in urban areas with congested power distribution and narrow lanes. We can provide you the best aerial bundled cable.
These cables are typically suspended overhead using electrical poles, allowing for easy access to power distribution in a wide range of settings, including residential, commercial, and industrial environments.
Features of aerial bundled cable
1 The insulation materials. The insulation materials used in Aerial bundled cables include PVC, XLPE and PE.
2 Compact design. Compared to traditional overhead power lines, the bundled design of ABC cable achieve for more compact and efficient installation.
3 Messenger wire.
3 Aerial bundled cable phase identification
The conductors used for all the cores are of stranded hard drawn aluminium which are compacted, and are available in sizes ranging from 25, 35, 50, 70, 95 or 150 mm2.
Aerial bundled cable is composed of several insulated conductors bundled together. The insulated conductors must be readily identifiable, and there is a special need to distinguish between the phase and neutral conductors. The phase conductors are identified by prominent longitudinal ribs on the core insulation, one, two or three ribs to distinguish between the three phases.
4 Construction of aerial bundled cable
Aerial bundled cable is made up of phase conductor and neutral conductor and insulation. The conductors are typically made of aluminum. The insulation is made of PE or XLPE and is designed to withstand voltage, temperature, and environmental conditions. The bundle of conductors is suspended from poles or towers using messengers and clamps. Aerial bundled cable also called ABC cable, the cable consist of three major components:
1 phase conductor
These are aluminum conductor insulated with XLPE or PE. These may be of single, two, or three phase as per the requirement of the circuit.
2 Neutral conductor(messenger)
Messenger of the cable is made from aluminum alloy. This is a single conductor which may or may not be insulated. All the cores of the cables are twisted around it, it bears the weight of the complete cable.
3 Street lighting conductor
This is an optional object depending upon the circuit requirement. Street lighting conductor of the cable consist of aluminum conductor insulated with XLPE or PE.
Supplementary Note size of aerial bundled cable
Size are measured by square (mm2). The following are some aerial bundled cable size that reference standard NF C 33-209.
2x16 mm2
2x25 mm2
4x16 mm2
4x25 mm2
3x25+54.6 mm2
3x25+54.6+1x16
...

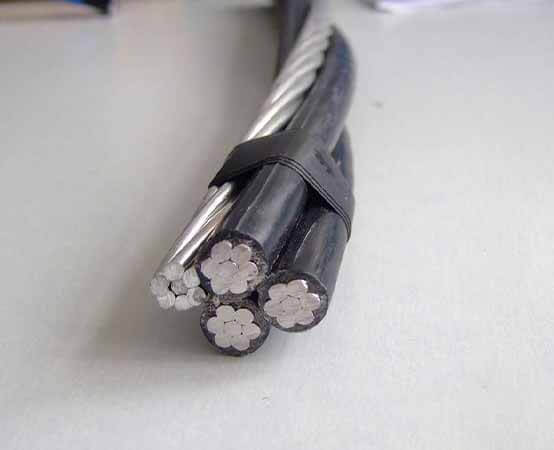

Here is a diagram of the structure.
5Aerial bundled cable price list
A price list for ABC Cable can vary depending on several factors such as:
Cable Type: Different types of cables have different characteristics and are used in different applications. Examples of cable types include XLPE insulated, PVC insulated, Copper conductor, Aluminum conductor, etc.
Number of cores: The number of conductors in the cable, usually measured in number of cores.
Conductor size: The size of the conductor, usually measured in square millimeters (mm²).
Approximate Diameter: The approximate diameter of the cable.
Approximate Weight : The approximate weight of the cable per meter.
Brand: The brand of the cable can also affect the price. Some brands may be more expensive than others.
Quantity: The price of the cable may also vary based on the quantity purchased.
Taxes and duties: The price of the cable may also be affected by taxes and duties.
It's difficult to provide a comprehensive price list for low voltage Aerial bundled cable as it can vary depending on the above factors and also the market condition. Prices can fluctuate over time and may change based on various factors such as demand and supply, raw material prices, etc. It's recommended to check with us (we are cable & wire manufacturer and exporter) for specific information and to ensure that the cable meets the requirements of the particular application. We will provide you the best aerial bundled cable price within 24 hours after receiving your inquiry.
6Type of Aerial bundled cable
Classified by voltage
LV aerial bundled cable
For example
0.6/1 kv abc aerial bundled cable-NFC 33 209 (AL/XLPE)
0.6/1kv abc aerial bundled cable-BS 7870-5(AL/XLPE)
0.6/1kv abc aerial bundled cable-GB/T 12527(AL/XLPE)
0.6/1kv abc aerial bundled cable-AS NZS 3560.1(AL/XLPE)
In American and Philippines also named service drop cable, include three types duplex service drop cable, triplex service drop cable, quadruplex service drop cable.
MV aerial bundled cable
For example
6/10kv non screened abc cable(AL/XLPE/HDPE)
8.7/15kv non screened abc cable(AL/XLPE/HDPE)
12/20kv screened abc cable(AL/XLPE/HDPE)
18/30kv screened abc cable(AL/XLPE/HDPE)
Classified by construction
AB cable with insulated messenger conductor
AB cable with insulated messenger conductor Include two types:
Type 1, 4 wire, three phase conductor insulated and 1 messenger conductor insulated.
Type 2, 2 wire, 1 phase conductor insulated and 1 messenger conductor insulated.
Also have other types:
AB cable with bare messenger conductor
AB cable with insulated messenger conductor & with insulated street light
AB cable with bare messenger conductor & with insulated street light
7 Advantages and application fields of Aerial bundled cable
Advantages of Aerial bundled cable
1 More reliable than traditional overhead lines. ABC cable consist of insulated conductors that are designed to withstand harsh weather conditions. The insulated conductor provides better production against electrical faults and short circuits, reducing power outages.
2 Cost effective. The bundled design of ABC cables reduces the need for support structures, making them a cost effective alternative.
3 Safer. The insulated conductors of ABC cables are designed to reduce the risk of electrical shock, it is a safer option for overhead power lines.
4 Easy Installation. The compact design of ABC cables make them easier to install and maintain compared to traditional overhead power lines.
Application of Aerial bundled cable
1 In low voltage overhead power lines 0.6/1Kv.
2 Rural areas. Aerial bundled cable are ideal for rural electrification projects, because cable can be installed quickly and easily. They are also more reliable compare than traditional overhead power lines.
3 Urban areas. ABC cable are becoming increasingly popular in urban areas, because they offer a better compact and efficient plan to traditional overhead power lines. They are safer and more reliable, reducing the risk of power outages and faults.
4 Industrial application. ABC cable are commonly used in industrial application, such as mining, oil and gas, and chemical plants.
8 Summary
Aerial bundled cable is a cable widely used in distribution overhead lines. It has the advantages of good mechanical properties, UV resistant, insulation and heat resistance, it can meet the needs of different application fields. safe and reliable.
You can also learn more by watching the following video：
