A Simple but Comprehensive guide to solar cable, solar wire and solar connectors
Share:
1 What is a solar cable?
2 Use of solar power cables
3 Differences between solar cable and normal cables , Summary of five points
4 Components of solar cable
5 Types of solar cable
6 Applications of Solar Cables
7 Your Trustworthy Solar Cable Manufacturer – TANO
1 What is a solar cable?

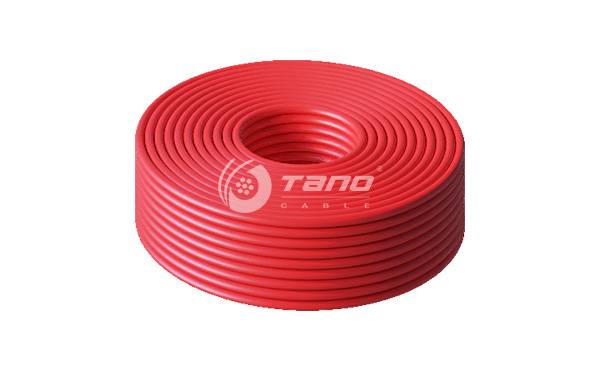

At its core, solar cable, also known as PV cable, is made up of many insulated wires that are encased in an outer jacket. It is specially designed to transmit power generated by solar panels and other components of PV safely and efficiently.
.jpg)
2 Use of solar power cables
Although solar power generation has incomparable advantages, the intensity of the sun is affected by various factors, Energy can not maintain a constant. That is, solar energy is a kind of radiant energy, which has timeliness. It must be converted into other forms of energy in time to store and utilize it. Cables as transmission elements have become an indispensable component in photovoltaic power generation systems.

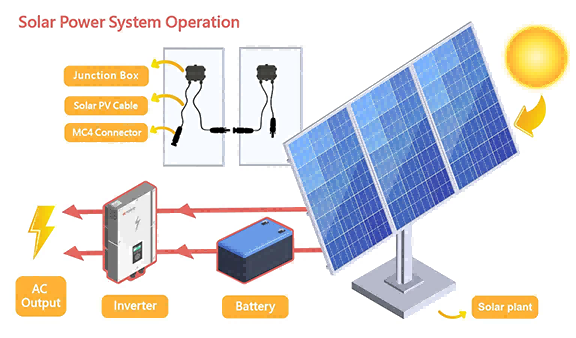

Solar energy systems work by harnessing the power of sunlight and converting it into direct current (DC) electricity through the use of solar panels. When sunlight interacts with the solar cells, it releases electrons, generating an electric current. The direct current (DC) electricity is then transmitted through solar cables to inverters, which convert it into alternating current (AC) electricity suitable for powering homes or businesses. The primary function of solar cables is transmitting electricity from the solar panels to the rest of the system, allowing the utilization of solar energy for residential, commercial, and industrial applications.
.png)
3 Differences between solar cable and normal cables , Summary of five points
The comprations of solar cable vs normal cable are given below:
a. Design and Construction
Solar cables are equipped with features that make them suitable for outdoor solar installations. They have cross-linked polyethylene (XLPE) insulation, which provides excellent resistance to solar radiation, extreme temperatures, and adverse weather conditions. This insulation ensures the durability and longevity of solar cables, even in harsh environmental conditions.
In contrast, normal cables typically have polyvinyl chloride (PVC) insulation, which is less resistant to sunlight and extreme weather conditions, making them more suitable for general indoor use.
b. Resistance and Protection
In solar cable vs normal cable, solar cables are designed to endure challenging conditions. They are flexible, moisture-resistant, sunlight-resistant, and flame-resistant, which makes them suitable for outdoor use.
Normal cables, on the other hand, are not typically equipped with the same level of protection and resilience, Because they are intended for more common indoor applications where exposure to harsh elements is less.
c. Environmental Compatibility
Solar cables are made to tolerate a wide range of environmental factors. They can withstand high temperatures, cold weather, acid, oil, and alkali materials, making them ideal for outdoor installations. Additionally, they are designed to be eco-friendly, promoting sustainability in solar power systems.
Normal cables, while adequate for general use, may not possess the same level of compatibility.
d. Color Differentiation
Solar cables are commonly found in black and red colors, allowing electricians to differentiate their uses in solar installations. The black cable is typically used for negative (-) connections between solar panels, while the red color is meant for positive (+) connections. This color coding facilitates the proper installation and maintenance of solar power systems.
e. Lifespan
Solar cables have a long service life, providing reliable performance over an extended period.
In comparison, normal cables may not have the same level of durability or longevity, as they are typically designed for standard indoor use.
So, solar cables are purpose-built for solar power systems, providing superior insulation, resistance to harsh conditions, and environmental compatibility. Their design and construction make them ideal for outdoor use.
4 Components of solar cable
Solar cables typically consist of several layers:
Conductor:the inner layer comprises conductive materials such as copper or aluminum, which carry electricity from the solar panels to the inverter.
Insulation:surrounding the conductor is the insulation layer, usually made of cross-linked polyethylene(XLPE) or ethylene propylene rubber(EPR). this insulation protects the cable from environmental factors and prevents electrical leakage.
Sheath:the outermost layer, known as the sheath, provides additional protection against abrasion, sunlight, and moisture. Material like polyvinyl chloride (PVC) or HFFR compounds.
5 Types of solar cable
In a solar PV system,two main types of cables play vital roles in efficient power transmission:
Direct Current (DC) Solar Cables:
DC solar cables transmit direct current (DC) electricity that solar panels generate. They connect solar panels to inverters or charge controllers, which regulate the flow of electricity and convert it into usable forms. DC solar cables typically have thick insulation to resist high voltages and outdoor conditions.
Alternating Current (AC) Solar Cables:
AC solar cables transmit alternating current (AC) electricity within the solar energy system, enabling the distribution of solar-generated electricity to homes, businesses, or the utility grid. Depending on the voltage and current requirements of the AC system, they may have different specifications than DC cables.
6 Applications of Solar Cables
Solar cables find applications across various industries, including:
Residential
Commercial
Industrial
Agricultural
7 Your Trustworthy Solar Cable Manufacturer – TANO
Our solar cables are weatherproof, low-smoke, halogen-free, flexible, and highly endurance in humid environments.
For reliable solar cables and related products, consider TANO. We are a professional solar cable manufacturer. We offer OEM/ODM services, and the package and cable length can be modified according to customers' requirements. Please feel free to contact us for further details or technical support.
